Winland WaterBug 200 with 1 Sensor

Winland WaterBug 200 with 1 Sensor

WIN-SS-WB-200-WT
  • $89.99

Only 6 left!

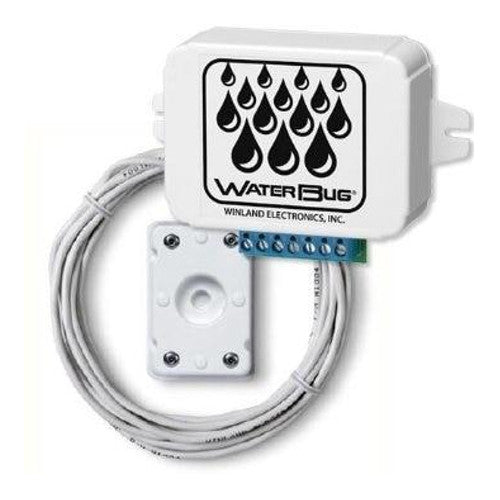

The Winland WaterBug 200 with 1 Sensor is a water detection device that helps protect against costly water damage and is ideal for computer rooms, document storage areas, warehouses, sump pumps and basements. The Winland WaterBug 200 includes one water sensor probe that connects to the main Waterbug unit that can connect up to 6 water sensors for extra water leak detection coverage.

Features

  • Protect against costly water damage
    The Winland WaterBug 200 with 1 Sensor is a water detection device that helps protect against costly water damage and is ideal for computer rooms, document storage areas, warehouses, sump pumps and basements.
  • Detect the first sign of water leak
    Each sensor has surface contacts that will detect the first appearance of water forming a film on the floor. The sensor will not alarm due to condensation or high humidity.
  • Connect up to 6 water sensors
    The Winland WaterBug 200 includes one water sensor probe that connects to the main Waterbug unit that can connect up to 6 water sensors up to a hundred feet away for extra water leak detection coverage.
  • Add-on a buzzer
    The Winland WaterBug 200 with 1 Sensor operates on 12 or 24 Volt AC/DC and has a form C relay output that can be connected to alarm panels, bells, dialers (not included) for audio alerts.

SPECS

Technical Specifications

  • Power Requirements:
    • 8 to 28 VDC @ 35mA
    • 8 to 28 VAC @ 100 mA
  • Operating Temp: 32 to 130°F (0 to 54 °C)
  • Output Form:
    • C (N.O./N.C.)
    • 1 Amp @ 30 VDC, resistive
    • 1 Amp @ 24 VAC, resistive
  • Audible Alarm:  Install a BZ-1 for local buzzer.
  • Maximum Distance Between Console and Sensors:
    • 1-2 probes; max 200’ (61 m)
    • 3-6 probes; max 100’ (30.5 m) per sensor
  • Maximum Sensors per Console:  6
  • Console Dimensions:  4.1 x 2.36 x 1.18” (10 x 6 x 3 cm) with flanges

INSTALLATION

Installation Guide

Installation Manual

Wiring Diagram
