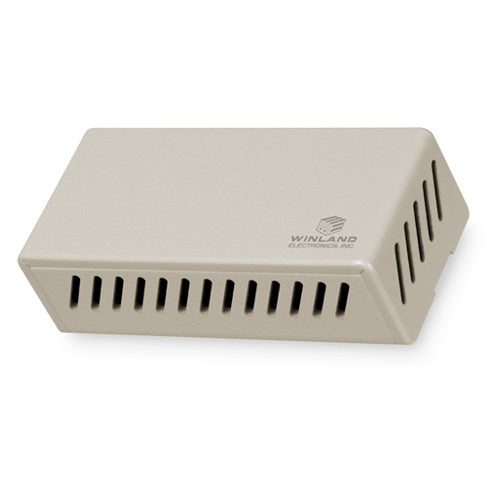

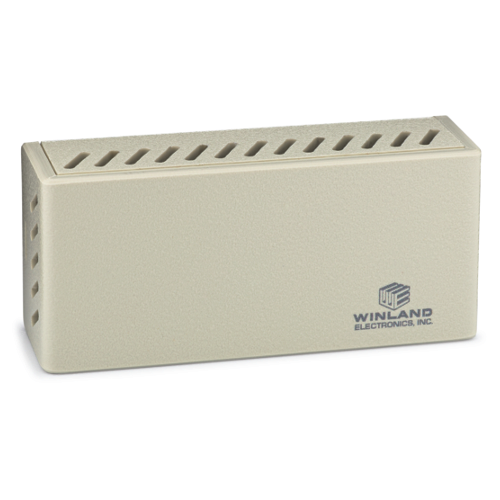

Winland Electronic Humidty SensorWIN-SS-HAIIIPLUS-WT
The Winland Electronic Humidty Sensor is an electronic humidity sensor that monitors humidity levels for use with the EnviroAlert systems, EnviroAlert EA200-12, EnviroAlert EA400-12, and EnviroAlert EA800.
Works with the EnviroAlert systems listed below:
- EnviroAlert EA200-12
- EnviroAlert EA400-12
- EnviroAlert EA800
Power Requirements: 12 VDC @ 5 mA
Sensing Range: 5-95% RH ±5% @ 10-90% RH, 77° F
Sensing Element: Capacitive / IC
Response Time: TC < 12 min
Operating Temperature: +32° to +152° F (0° to +50° C)
- Weight: 5 oz (0.14 kg)
Dimensions: 3 x 2 x 1.75" (7.6 x 5.08 x 4.45 cm)
Mounting: Surface Mount
- Includes: terminal blocks, mounting screws and instruction manual.
