WatchNET Thermal Camera Kit

WNT-CM-TNC-20-BDCKIT-WT
  • $22,386.99


NOTE: No returns for refund or credit will be allowed on this kit, however it will be fully covered by DOA and warranty.

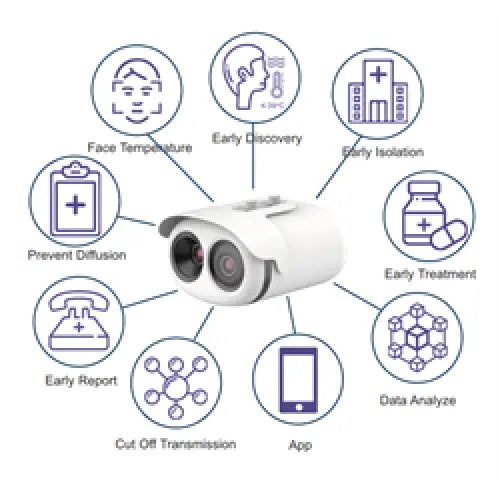

The WatchNET Thermal Camera Kit is a non-contact facial recognition and body temperature detection system with sophisticated on-board temp-detection algorithm that recognizes faces and sounds an alarm when high temperature is detected. It can recognize and provide live body temperature readings for multiple people at the same time, so it is ideal for high traffic areas such as schools, hospitals, offices, or nursing homes. The WatchNET Thermal Camera Kit is an important tool to help reduce the spread of illness, by taking a proactive approach to early discovery, early reporting, early isolation and early treatment.

Features

  • Recognizes faces and sounds an alarm when high temperature is detected
    The WatchNET Thermal Camera Kit is a non-contact facial recognition and body temperature detection system with sophisticated on-board temp-detection algorithm that recognizes faces and sounds an alarm when high temperature is detected.
  • Live Body Temperature Readings
    Operators will see a live view of people entering the area with their faces indicated as well as their temperature and high temperature will be flagged automatically.
  • Helps reduce spread of illness*
    The WatchNET Thermal Camera Kit is an important tool to help reduce the spread of illness*, by taking a proactive approach to early discovery, early reporting, early isolation and early treatment.
  • Ideal for monitoring high traffic areas
    It can recognize and provide live body temperature readings for multiple people at the same time, so it is ideal for high traffic areas such as schools, hospitals, offices, or nursing homes.
  • Accurate multiple body temperature readings
    The WatchNET Thermal Camera Kit is capable of reading up to 16 people at the same time with an accuracy temperature reading of ±32.360°F (±0.20°C).

*This temperature monitoring system is not a substitute for medical grade FDA approved thermometers.

Sell Sheet

SPECS

Technical Specifications

  • THERMAL CAMERA
    • Detector Type: Uncooled IRFPA Micro bolometer
    • Effective Pixels: 400(H) ×300(V)
    • Pixel Size: 17um
    • Thermal Sensitivity (NETD): 40mK @F1.0, 300K
    • Spectral Rang: 8~14um
    • Image Setting:
      • Polarity LUT/ DVE/ Mirror/ FCC/ /3D DNR
      • Brightness/Contrast/ ROI
    • Color Palettes:
      • Black-Heat / White-Heat / Rainbow / Iron-Red
      • up to 17 modes
  • THERMAL LENS
    • Lens Type: Fixed
    • Focus Control: Manual Focus
    • Focal Length: 8mm
    • Max. Aperture: F1.0
    • Angle of View: H: 46°, V:35.3°
  • VISIBLE CAMERA
    • Visible Camera: 1/1.9" Sony CMOS
    • Effective Resolution: 1920(H)×1080(V)
    • Shutter Speed: 1/50 ~ 1/64,000s
    • WDR: True WDR 120dB
    • Min. Illumination
      • Color: 0.01Lux @(F1.2, AGC ON)
      • B/W: 0.001Lux @(F1.2, AGC ON)
    • S/N Ratio: More than 55dB
    • Focal Length: 2.7 ~ 12mm
    • Max Aperture: F1.6~ F2.9
    • Angle of View: 105°~ 32°
    • Focus Control: Motorized
  • VIDEO AND AUDIO
    • Compression: H.265, H.264, MJPEG
    • Frame Rate
      • Main Stream:
        • Thermal: D1 @25/30fps
        • Visible: 1920×1080/1280×720 @25/30fps
      • Sub Stream:
        • Thermal: CIF @25/30fps
        • Visible: D1/VGA/640×360/CIF/QCIF/QVGA @25/30fps
    • Region of Interest: Off / On (8 Zone, Rectangle)
    • Digital Zoom: 16x
    • Mirror: Yes
    • Motion Detection: Yes
    • Privacy Masking: Off / On (4 Area, Rectangle)
    • DVE Image Enhance: Support
    • Audio Compression: G.711, AMR, RAW_PCM (Optional)

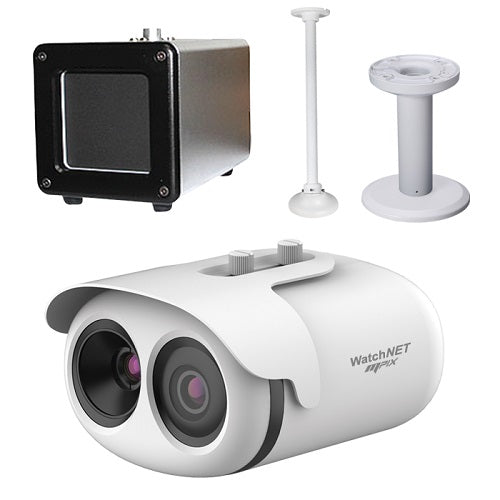

  • INCLUDES
    • CBi-Spectrum thermal camera
    • Black body Calibrator
    • 2 X Pendant mount brackets
    • VMS Pro 64 Ch Software

INSTALLATION

Installation Guide

Installation Guide

Manual
