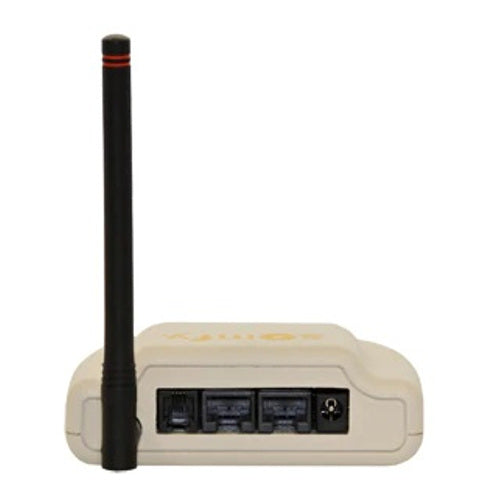

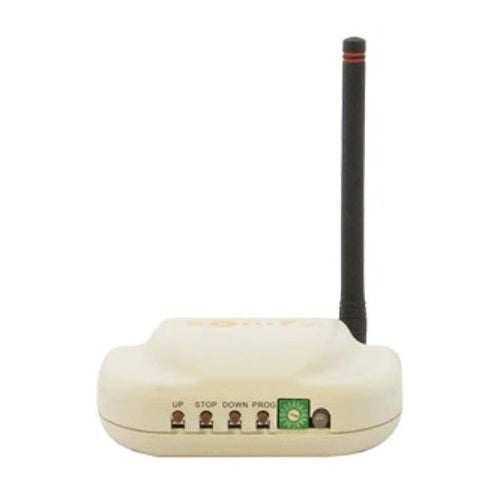

The Somfy Universal RTS Interface II allows third party automation systems to control Somfy-powered solutions. The Somfy Universal RTS Interface II can be used in many different applications including awning, blinds, building management, draperies, exterior solar screens, pergola, projection screen, retractable insect screens, rolling shutter, shades, smart home, and more!

Features

• Allows third party automation systems to work with Somfy-powered solutions

  The Somfy Universal RTS Interface II allows third party automation systems to control Somfy-powered solutions, by converting RS232 and RS485 protocol into RTS commands.


• 16 channel interface

  The Somfy Universal RTS Interface II allows you to control up to 16 URTSIs together for up to 256 channels (via RS485).


• Works with many different applications


  The Somfy Universal RTS Interface II can be used in many different applications including awning, blinds, building management, draperies, exterior solar screens, pergola, projection screen, retractable insect screens, rolling shutter, shades, smart home, and more!

COMPATIBILITY

Protocol

Communicates with RS232, RS485 and IR

Works with

All RTS motors and receivers

SPECS

Technical Specifications

• Power Input: 9 V DC, 200mA-UL approved
• Power Consumption: 20 mA
• Material: ABS
• Dimensions: 3” L x 4” W x 1.75” H
• Maximum Range: 65 feet radius (under optimal conditions)
• Operating Temperature Range: Ambient temperature
• Shipping Weight: 1 lb.
• LED: Bi-color
• Frequency: 433.42 Mhz
• Includes:
• URTSI II
• Antenna
• Power Supply
• DB9 to RJ45 for RS232

INSTALLATION

Installation Guide

Operating Instructions
