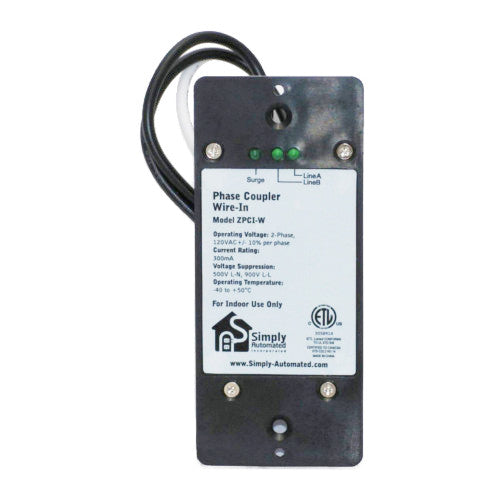

Simply Automated ZPCI-W UPB Wired-in Inverting Phase Coupler

Simply Automated UPB Wired-in Inverting Phase Coupler

SMP-MD-ZPCI-W-BK
  • $79.99


The Simply Automated UPB Wired-in Inverting Phase Coupler is an uniquely designed inverting phase coupler that mounts inside a junction box that is useful for coupling UPB signals across two 120VAC power circuits in a split-phase residential installation. The Simply Automated UPB Wired-in Inverting Phase Coupler has an unique patent pending design that allows multiple units to be used in large homes with multiple breaker boxes to make the already very strong UPB signal even stronger across phases.

Features

  • Couples UPB Signals
    The Simply Automated UPB Wired-in Inverting Phase Coupler is useful for coupling UPB signals across two 120VAC power circuits in a split-phase residential installation.
  • Built-in surge suppression
    The Simply Automated UPB Wired-in Inverting Phase Coupler has a built-in surge suppression, so you don't have to worry if the power fluctuates.
  • Add couplers while increasing signal strength
    The Simply Automated UPB Wired-in Inverting Phase Coupler is unique in that  each additional inverting phase coupler used adds signal strength between phases, rather than conventional, non-inverting phase coupler that will attenuate signals reducing their strength.
  • Advanced UPB powerline communication technology
    The Simply Automated UPB Wired-in Inverting Phase Coupler employs advanced UPB powerline communication technology, which means no computer programming or wires required.

COMPATIBILITY

Protocol

Uses UPB powerline communications

SPECS

Technical Specifications

  • Operating Voltage: two-phase, 120VAC +/- 10% per phase
  • Voltage Suppression: 500V L-N, 900V L-L (ZPCI-B / -W only)
  • Peak Surge Current: 27,000A per phase (ZPCI-B / -W only)
  • Operating Temp: -40 to 50°C
  • Dimensions: 4.10"H x 1.75"W x 1.44"D (104 x 45 x 37mm)
  • Weight: 3.8 oz (108g)
  • Mounting: standard junction box

INSTALLATION

Installation Guide

User Guide
