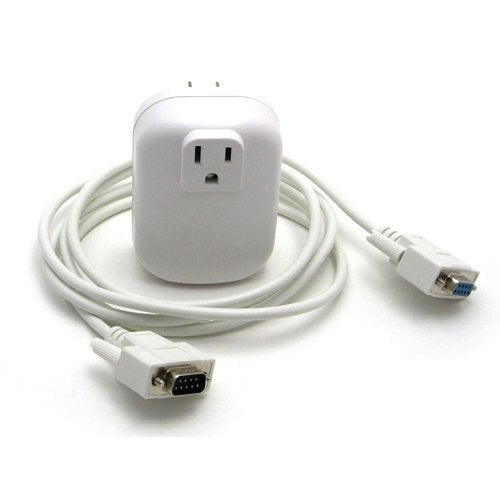

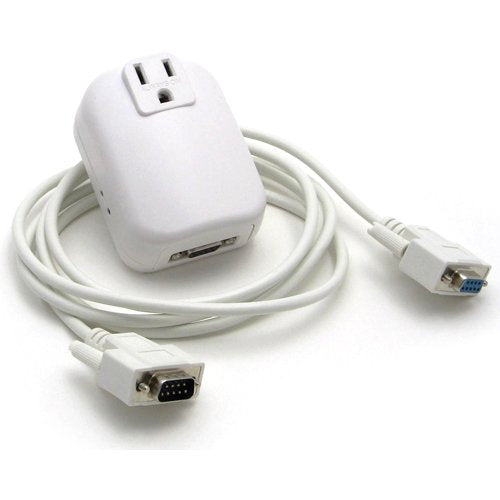

Simply Automated UPB Computer Interface Module

SMP-MD-UMC-DB9-W-WT
  • $94.99


The Simply Automated UPB Computer Interface Module is a plug-in module designed to convert serial RS232 or USB signals into highly-reliable, Universal Powerline Bus (UPB) signals to enable computer-based configuration and control of lighting scenes, switches, modules and other UPB devices, over the powerline. The Simply Automated UPB Computer Interface Module provide a bridge between the PC/controller to the powerline via the module's plug-in AC connection.

Features

  • Converts RS232 or USB signals to UPB signals
    The Simply Automated UPB Computer Interface Module converts serial RS232 or USB signals into highly-reliable, Universal Powerline Bus (UPB) signals, enabling computer-based configuration and control of lighting scenes, switches, modules and other UPB devices, over the power line.
  • Bridges PC/controller to powerline
    The Simply Automated UPB Computer Interface Module provide a bridge between the PC/controller to the powerline via the module's plug-in AC connection.
  • Simple plug-in installation
    The Simply Automated UPB Computer Interface Module only requires simple plug-in installation and can be easily plugged into a standard 120VAC outlet.
  • Easily Integrate UPB devices into your home
    The Simply Automated UPB Computer Interface Module allows UPB devices such as switches, multi-button controllers and schedulers to be easily integrated in to a new home or can replace switches and timers in an existing home.

COMPATIBILITY

Protocol

Convert serial RS232 or USB signals into Universal Powerline Bus (UPB) signals

SPECS

Technical Specifications

  • Power: 120VAC +/- 10%, 60 Hz
  • Always On Outlet:
    • Max Load: 15A Max.
    • Input Current: 83mA
    • Operating Temp: 30-120°F (0-50°C)
  • Computer Interface: serial RS-232 (UMC-DB0-W), or USB (UMC-USB-W)
  • Physical Dimensions:
    • UMC-DB9-W; 3.4 x 2.6 x 1.5" (86 x 65 x 38mm)
    • UMC-USB-W; 2.8 x 2.3 x 1.25" (71 x 59 x 30mm)
  • Weight (both models): 8.8oz (250g)
  • Mounting (both models): Plug-in
