Simply Automated UFR-V0 Anywhere Virtual Wire-In Relay Module

Simply Automated Anywhere Virtual Wire-In Relay Module

SMP-MD-UFR-V0-BK
  • $44.99

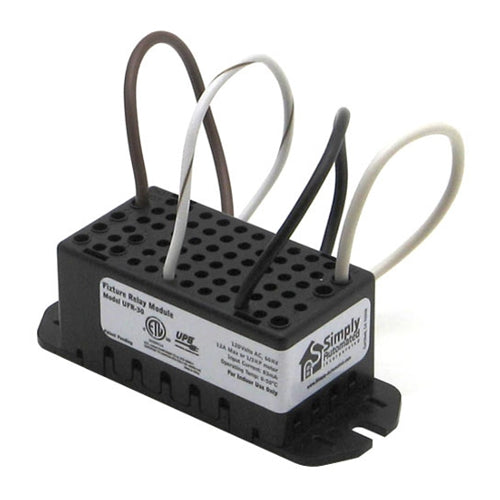

The Simply Automated Anywhere Virtual Wire-In Relay Module is a heavy duty wire-in relay module that delivers up to 12 Amps of (120VAC) power, letting you remotely control your incandescent, fluorescent, halogen, LED, magnetic and electronic low-voltage lighting transformers & ballasts as well as appliances, pumps, motors, fans, and heaters. The Simply Automated Anywhere Virtual Wire-In Relay Module uses advanced UPB powerline communication technology, which means no computer programming or wires required.

Features

  • Remote control your lighting and appliances anywhere in your home
    The Simply Automated Anywhere Virtual Wire-In Relay Module lets you remotely control your incandescent, fluorescent, halogen, LED, magnetic and electronic low-voltage lighting transformers & ballasts as well as appliances, pumps, motors, fans, and heaters throughout your home.
  • Heavy-duty Professional Grade
    The Simply Automated Anywhere Virtual Wire-In Relay Module is a heavy duty wire-in relay module that delivers up to 12 Amps of (120VAC) power, providing high quality, professional grade fixture module for remote virtual lighting anywhere in your home.
  • Advanced UPB Powerline Communication Technology
    The Simply Automated Anywhere Virtual Wire-In Relay Module employs advanced UPB powerline communication technology, which means no computer programming or wires required.
  • Endless Expansion Capabilities
    The Simply Automated Anywhere Virtual Wire-In Relay Module can be combined with one or more Anywhere 3-Way Switch Kit (V3WAY-A) or Anywhere Switch (US1-V0) for remote virtual lighting and appliance control throughout your home.

NOTE: Requires hot and neutral connections

COMPATIBILITY

Protocol

Uses UPB powerline communications

Works with

Compatible with all Simply Automated’s Anywhere Virtual Lighting Control switches and accessories.

SPECS

Technical Specifications

  • Power: 120VAC +/- 10%, 60Hz (GFI/AFI compatible)
  • Max Load: 120 VAC, 12 Amps or 1/3 HP motor
  • Controlled Output: 120 VAC, contact closure
  • Connections: #14 AWG stranded wire, 6”; Black-AC Line, White-AC Neutral, Brown-AC Output (controlled)
  • Operating Temperature: 30 to 120°F (0-50°C)
  • Dimensions: 3.6’H x 1.4”W x 1.2”D (91 x 36 x 30 mm)
  • Weight: 3.2 Oz. (90g) Net, 4.8 Oz. (136g) Gross
  • Mounting: Standard outlet box; screw or ties can be used to mount in other locations. Mounting ears break away for compact installations.

    INSTALLATION

    Installation Guide

    User Guide
