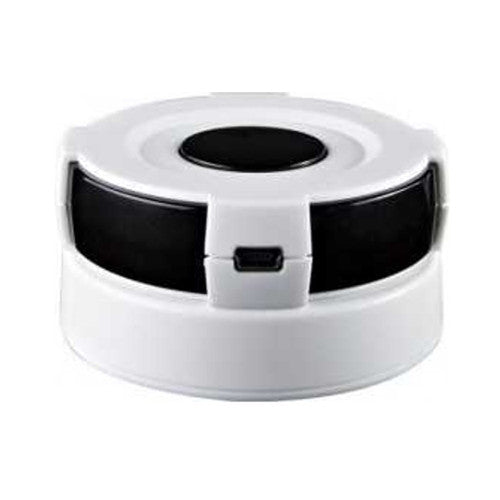

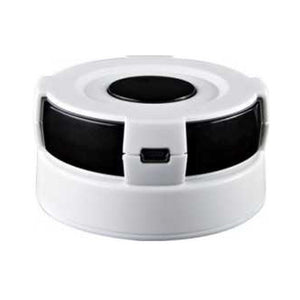

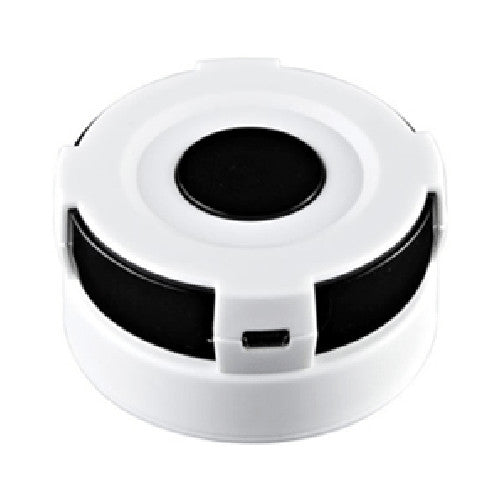

The Remotec Z-Wave IR Extender for Air Conditioners gives you infrared control of your air conditioner by translating the Z-Wave protocol thermostat commands to IR code. You can select the IR code from the built-in IR code library, or by using the learning function via the controller's user interface. The Remotec IR Extender has a built-in temperature sensor that informs the controller of the ambient room temperature to ensure the room is always comfortable.

Features

• IR control of your Air Conditioner


  The Remotec Z-Wave IR Extender for Air Conditioners gives you infrared control of your air conditioners by translating the Z-Wave protocol thermostat commands to IR code, giving you even easier access to your home's heating and cooling.


• Learning Function


  The Remotec Z-Wave IR Extender for Air Conditioners can learn IR commands to ensure seamless integration into your home automation network.

• Built-in Directional Transmitter

  Five built-in directional transmitters that provide 5-directional surround coverage, ensuring there are no transmission dead zones.


• Built-in Temperature Sensor

  The Remotec IR Extender has a built-in temperature sensor informs the controller of the ambient room temperature to ensure the room is always comfortable.


• Built-In IR Air Conditioner Library

  This IR extender comes with a built-in IR library for air conditioners to ensure compatibility for control of most AC vendors.

COMPATIBILITY

Protocol

Works with

Compatible with eedomus+, Zipabox, Vera3/lite/Edge, Zibase PRO

SPECS

Technical Specifications

• Type of module: Z-Wave slave
• Power supply: 3 x AAA batteries or 5VDC 100mA (USB)
• Z-Wave frequency: 868.42MHz
• Z-Wave range: 25m
• IR frequency: 15 to 455kHz
• IR range: 7m
• Temperature measurement range: 0-40°C
• Operating temperature: 0°C to 40°C
• Storage temperature: -20°C to 60°C
• Dimensions: 70 x 33.5 mm (diameter x height)
• Weight: 90g (including batteries)

INSTALLATION

Installation Guide

User Manual

Code List
