NOTE: This is an OPEN BOX item and is FINAL SALE (not eligible for Return/Exchange)

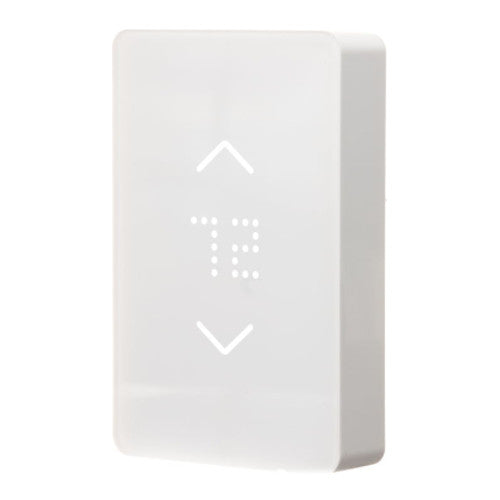

The Mysa Wi-Fi Smart Thermostat puts you in control of your home's heating and works with 120V and 240V baseboard heaters, convectors, fan force connectors, and radiant ceiling heating. With the Mysa Wi-Fi Smart Thermostat, you can save up to 26% on your energy bill making it the smartest choice.

Features

• Save money on your energy bill

  Set heating schedules according to your routine to increase your home's heating efficiency and save up to 26% on your energy bill.

• Geofencing knows your location and adjusts the temperature

  Geofencing uses your smartphone location to detect your proximity from home and adjusts the temperature to save money or provide comfort for your arrival.

• Works with electric baseboard heaters

  Compatible with baseboard heaters, convectors, fan force connectors, and radiant ceiling heating.

• Coordinate multiple thermostats to work together

  Coordinate multiple thermostats to work together such as keeping the kids’ rooms on the same schedule.

• Sleek, intuitive LED interface

  Sleek, intuitive LED interface with capacitive touch buttons that is easy to use.

COMPATIBILITY

Protocol

Works with

Heating System

Compatible with baseboard heaters, convectors, fan force conectors, radiant ceiling heating (How to tell what type of heating system I have?)

SPECS

Technical Specifications

• iOS Requirements: iOS 10.2 and above
• Android Requirements: Android 4.4 "Kit-Kat" and above
• Power: 3,800 W Max
• Voltage: 120 V AC / 240 V AC
• Current: 16 A Max
• Temperature: +/- 0.4 F/0.1 ℃
• Humidity: +/- 2%
• Control Range: Complete Off, 5-30 ℃
• Includes: Mysa Thermostat, Electrical Box Mounting Screws, Wire Connectors, Installation Guide
• Product Dimensions: 5.7 in (H) 3.8 in (W) x 1.1 in (D)

INSTALLATION

Installation Guide

Mysa-V1-0
A) Connect Mysa’s white wire to the second phase leg of the circuit - L2 (usually red).

B) Connect Mysa’s black wire to the supply wire - L1 (usually black) coming from the electrical panel.

C) Connect Mysa’s red wire to the load wire (usually black) going to the heater.

D) Connect Mysa’s green wire to the ground wire (usually green or bare copper).
