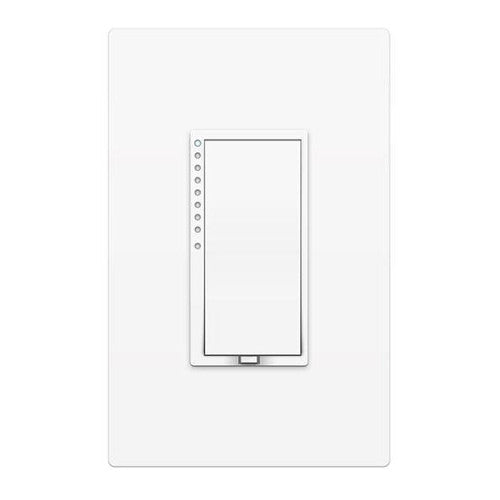

Insteon SwitchLinc 2477DH Dual-Band Smart Dimmer

Insteon SwitchLinc 1000W Dual-Band Smart Dimmer

INS-DM-2477DH-WT
  • $83.99


The Insteon SwitchLinc 1000W Dual-Band Smart Dimmer has 1000W dimming capacility and is an elegant addition to your smart home with the ability to remotely turn on/off/dim your lights from your smartphone when connected to the Insteon hub. With the Insteon SwitchLinc 1000W Dual-Band Smart Dimmer, you can create scenes to control multiple devices simultaneously with a single tap or set schedules to automatically turn on your porch lights at dusk

Features

  • Remotely turn on/off/dim your lights from your smartphone
    The Insteon SwitchLinc 1000W Dual-Band Smart Dimmer gives you the ability to remotely turn on/off/dim your lights from your smartphone when connected to the Insteon hub, giving you complete control of your lighting from anywhere.
  • Create Powerful Scenes
    You can create elegant whole-home lighting scenes to control multiple devices simultaneously with a single tap in minutes, helping to streamline and automate your lighting.
  • Set Automatic Schedules
    You can schedule individual wall switches or full groups of switches to turn on/off during particular hours and days of the week, so your lights automatically turn on when you need them.
  • Dual Band Support
    The Insteon SwitchLinc 1000W Dual-Band Smart Dimmer uses both powerline and wireless Insteon communication simultaneously for the best possible communication reliability and doubles as wireless access point and Insteon repeater.
  • Save Money on bills
    The Insteon SwitchLinc 1000W Dual-Band Smart Dimmer helps you save money on bills, as you can ensure your lighting is never left on longer than needed.
  • Customize on-level and fade on/off speed
    You can customize on-level and fade on/off speed to match your preferences.

COMPATIBILITY

Works with

Works with Amazon Alexa Works with Google Assistant*

*When connected to the Insteon Hub

SPECS

Technical Specifications

  • On-Levels: 32 locally, increments of 1% with software
  • Ramp Rates (full-ON to full-OFF):
    • 0.125 to 9 seconds if programmed locally,
    • 0.125 seconds to 8 minutes if programmed remotely
  • LED Indicator: 9 White LEDs, Optional Green, Blue, Amber, or Red with item 2400L Kit
  • Operation Modes: Insteon
  • Multi-Way Circuit Support: One SwitchLinc Dimmer controls load, Cross-Link any number of SwitchLinc Dimmers or other Insteon Controllers
  • Setup Memory: Non-volatile EEPROM
  • Insteon Addresses: 1 hard-coded out of 16,777,216 possible
  • Insteon Links: 417
  • Insteon Powerline Frequency: 131.65 kHz
  • Insteon Minimum Transmit Level: 3.2 Vpp into 5 Ohms
  • Insteon Minimum Receive Level: 10 mV
  • Insteon Messages Repeated: Yes
  • Radio Frequency: 915 MHz
  • Ramp Rates (full-ON to full-OFF):
    • 0.125 to 9 seconds if programmed locally,
    • 0.125 seconds to 8 minutes if programmed remotely via software
  • Paddle Type: True rocker action
  • Wire Nuts: 4
  • Mounting: Mounts in a single or multiple-ganged junction box. Control 200 W less load for each immediately adjacent Dimmer Switch installed. For example, 600 W load control becomes 400 W with another dimmer to the immediate right or left. Use a triple-gang box with a mechanical switch in the center to avoid de-rating.
  • Operating Conditions: Indoors, 32 to 104° F, up to 85% relative humidity
  • Dimensions: 4.1" H x 1.8" W x 1.2W" D
  • Weight: 3.6 oz
  • Supply Voltage: 100-277 Volts AC +/- 10%, 50/60 Hertz, single phase
  • Neutral Wire: Required
  • Power Wire Leads: 6", 18 AWG, stranded,600V, 105° C insulation, ends stripped and tinned, LINE (black), LOAD (red), NEUTRAL (white)
  • Maximum Amps: 5 amps
  • Ground Lead: 6", 18 AWG, stranded, bare copper
  • Load Types: Wired-in incandescent lighting devices
  • Maximum Load: 1000 Watts
  • Power Consumption: 0.56 Watts
  • Heat Dissipation: Four heat dissipation fins integrate into the body of the switch. Individual fins can be permanently detached from the switch if fins interfere with installation. Removal of each individual fin will reduce rated switch capacity by 100W.
  • Includes:
    • Insteon High-Wattage Dimmer
    • Quick Start Guide
    • Mounting Screws
    • Wire Nuts

INSTALLATION

Installation Guide

Owner's Manual
