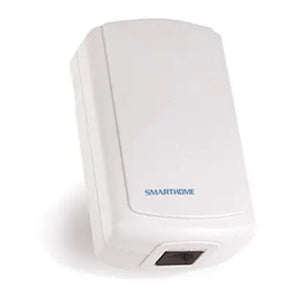

Insteon PowerLinc Dual-Band Serial Interface Modem

Insteon PowerLinc Dual-Band Serial Interface Modem

INS-HB-2413S-WT
  • $92.99


The Insteon PowerLinc Dual-Band Serial Interface Modem is a serial-based home automation interface designed to allow 24/7 running PCs or other hardware-based automation controllers to control Insteon devices including lights, appliances, heating/air conditioning systems and alarm systems directly via the Insteon network. It is a dual-band product, meaning it sends and receives both powerline and radio frequency (RF) Insteon signals, so it doubles as an access point.

Features

  • Allows other controllers to control Insteon devices
    The Insteon PowerLinc Dual-Band Serial Interface Modem is a serial-based home automation interface designed to allow 24/7 running PCs or other hardware-based automation controllers to control Insteon devices.
  • Uses simple RS-232 commands
    The Insteon PowerLinc Dual-Band Serial Interface Modem uses simple RS-232 commands, allowing any device with a programmable serial port (i.e. SimpleHomeNet's and Universal Devices' IP bridges) to send Insteon commands easily.
  • Dual-Band Device
    The Insteon PowerLinc Dual-Band Serial Interface Modem, meaning it sends and receives both powerline and radio frequency (RF) Insteon signals, so it doubles as an access point.
  • Easy, trouble-free serial connection
    The Insteon PowerLinc Dual-Band Serial Interface Modem uses an easy-trouble-free serial connection, so you don't need special adapters to connect.
  • Supports 1000+ links
    The Insteon PowerLinc Dual-Band Serial Interface Modem supports 1000+ links, providing plenty of connections between devices.

COMPATIBILITY

Works with

  • ISY-994i
  • Houselinc
  • PowerHome2
  • Smartenit Utility Suite

SPECS

Technical Specifications

  • Manufacturer: Insteon
  • Manufacturer Product No.: 2413S
  • Patent No.: U.S. Patent No. 7,345,998. Protected under U.S. and foreign patents
  • Certification: Safety tested for use in USA and Canada (ETL #3017581)
  • Software: Sold Separately
  • Status LED: Green/Red LED
  • Warranty: 2 Years
  • Operation Modes: Insteon
  • Connector Type: RJ-45
  • Interface: RS-232 & TTL
  • Baud Rate: 19,200 Kbps
  • Insteon Addresses: 1 hard-coded out of 16,777,216 possible
  • Insteon Links: 1,000+
  • Insteon Device Category: 0x03 (Network Bridges)
  • Insteon Device Sub-Category: 0x11
  • Insteon Power Line Frequency: 131.65 KHz
  • Insteon Minimum Transmit Level: 3.2 Vpp into 5 Ohms
  • Insteon Minimum Receive Level: 10 mV
  • Insteon Messages Repeated: Yes
  • Operating Conditions: Indoors, 32 to 104° F, up to 85% relative humidity
  • Dimensions (H x W x D): 3.9" x 2.6" x 1.5"
  • Weight: 4.0 oz
  • Voltage: 120 Volts AC +/- 20%, 60 Hertz, single phase
  • Pass-Through Outlet: No
  • Power Consumption: 1.68 Watts
  • Includes:
    • 1x - Insteon Serial Modem
    • 1x - Quick Start Guide
    • 1x - DB-9 Serial Cable - for connecting to a computer

INSTALLATION

Installation Guide

Quick Start Guide
