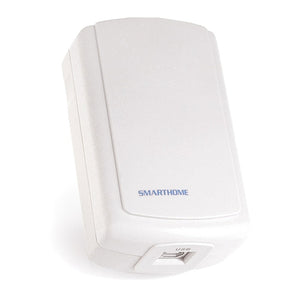

The Insteon PowerLinc Dual-Band Modem is a USB-based home automation interface designed to allow 24/7 running PCs or other hardware-based automation controllers to control Insteon devices including lights, appliances, heating/air conditioning systems and alarm systems directly via the Insteon network. It is a dual-band product, meaning it supports both wired and wireless communications and acts as an access point.

Features

• Allows other controllers to control Insteon devices


  The Insteon PowerLinc Dual-Band Modem is a USB-based home automation interface designed to allow 24/7 running PCs or other hardware-based automation controllers to control Insteon devices.


• Dual-Band Device


  The Insteon PowerLinc Dual-Band Modem is a dual-band product, meaning it supports both wired and wireless communications and acts as an access point.


• Easy, trouble-free USB connection

  The Insteon PowerLinc Dual-Band Modem uses an easy-trouble-free USB connection, so you don't need special adapters to connect.


• Supports 1000+ links


  The Insteon PowerLinc Dual-Band Modem supports 1000+ links, providing plenty of connections between devices.


• Supports basic X10


  The Insteon PowerLinc Dual-Band Modem supports basic X10 when used with X10 compatible hardware/software.

COMPATIBILITY

Works with

• Indigo
• Vera (MiCasa Verde)
• HomeSeer
• HCA (Home Control Assistant)
• PowerHome2
• Smartenit Utility Suite

SPECS

Technical Specifications

• Manufacturer: Insteon
• Manufacturer Product No.: 2413U
• Patent No.: U.S. Patent No. 7,345,998, International patents pending
• Certification: Safety tested for use in USA and Canada (ETL #3017581)

• Interface: USB

• Baud Rate: 19,200 Kbps

• USB Current Draw: 0 mA

• USB ID: VID: 0x403, PID: 0x6001

• Warranty: 2 Years
• Status LED: Green + Red LED

• Local Control: None

• Operation Modes: Insteon

• Combo Memory: Non-volatile EEPROM

• Insteon Addresses: 1 hard-coded out of 16,777,216 possible

• Insteon Links: 1,000+

• Insteon Power Line Frequency:131.65 KHz

• Insteon Device Category: 0x03 (Network Bridges)

• Insteon Device Sub-Category: 0x15

• Insteon Minimum Transmit Level: 3.2 Vpp into 5 Ohms

• Insteon Minimum Receive Level: 10 mV

• Insteon Messages Repeated: Yes
• Operating Conditions: Indoors, 32 to 104° F, up to 85% relative humidity

• Dimensions (H x W x D): 3.9" x 2.6" x 1.5"

• Weight: 4.0 oz
• Voltage: 120 Volts AC +/- 20%, 60 Hertz, single phase

• Includes:
• 1x - Insteon USB Modem
• 1x - Quick Start Guide
• 1x - USB Cable - Type B to Type A
