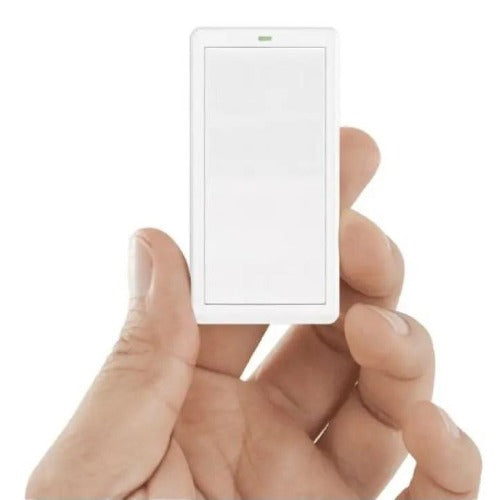

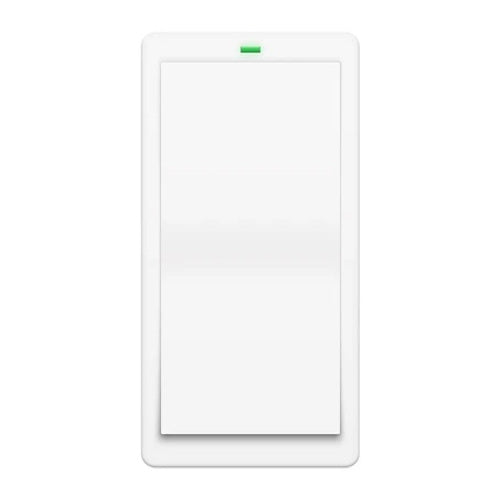

The Insteon Mini Remote Switch is a lightweight hand-held remote that provides wireless remote control of your Insteon bulbs, dimmers, switches, and plug-in or receptacle dimmers. You can easily raise and lower light levels or recall a favorite lighting level at the touch of a button for multiple lights from anywhere in your house. The Insteon Mini Remote Switch gives you instant remote control anywhere - wall, tabletop, car or in your hand!

Features

• Wireless remote control from anywhere


  The Insteon Mini Remote Switch provides wireless remote control of your Insteon bulbs, dimmers, switches, and plug-in or receptacle dimmers anywhere - wall, tabletop, car or in your hand!


• Control light level or recall your favorite lighting level

  You can easily raise and lower light levels or recall a favorite lighting level at the touch of a button for multiple lights from anywhere in your house.


• Launch powerful scenes at the touch of a button


  The Insteon Mini Remote Switch lets you launch powerful scenes with a touch of a button, such as controlling multiple lights in one room or across the entire house.


• Place anywhere you want remote control


  You can use as a portable handheld remote, mount it on the wall for use as a keypad, or place on tabletop or your car for quick, convenient, wireless remote control at your fingertips.


• Battery-operated


  The Insteon Mini Remote Switch is powered by a rechargeable lithium battery, meaning that it is completely wireless and requires no external power or communication wiring.

SPECS

Technical Specifications

• Manufacturer: Insteon

• Manufacturer Product No.: 2342-232 - (Each)
• Patent No.: U.S. Patent No. 7,345,998. Protected under U.S. and foreign patents

• Certification: FCC and IC Certified

• Warranty: 2 Years

• Operation: Two-color: Green and Red

• LED During Use:
• Green Flash Once: On | Bright | Fast On
• Red Flash once: Off | Dim | Fast Off
• Red Blink for ~3 Seconds: Scene Acknowledge Missing
• Setup Memory: Non-volatile EEPROM

• Scenes: 1 (default), configurable to 2

• Scene Configurations: 1 On/Off (default), 2 Toggle or 2 Always On

• Insteon Links: 400

• Scene Commands Supported:
• On | Off
• Begin Brightening | Begin Dimming
• End Brightening | End Dimming
• Fast On | Fast Off
• Software Configurable: Yes

• Operating Conditions: Indoors, 32°F to 104°F, up to 85% relative humidity

• Dimensions (H x W x D): 2.6" x 1.3" x .39"

• Weight: 0.05 lbs.

• RF Range: 50 ft. (line of sight)

• Frequency: 915 MHz

• Color: White

• Battery Type: 3.7 VDC Lithium Polymer, Rechargeable, non-replaceable

• Battery Charge Hold: Duration 5~6 months based on average 5 button presses/day (will decrease over time)
• Battery Recharging Cycles: >500

• Recharging Jack: Standard, Micro-USB, 5VDC

• Recharging Time: 1 Hour
• Includes:
• 1x - Insteon Mini Remote, 1-Scene
• 1x - Quick Start Guide

INSTALLATION

Installation Guide

Quick Start Guide

Owner's Manual
