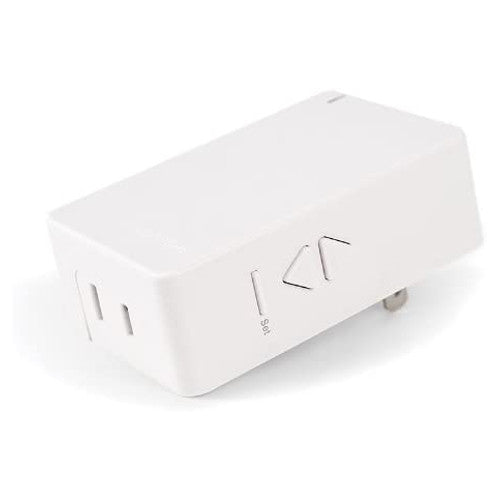

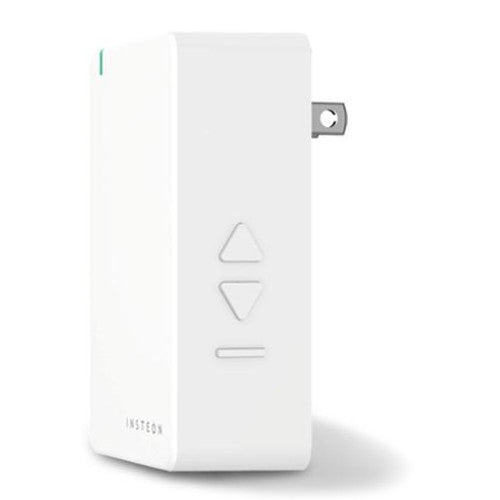

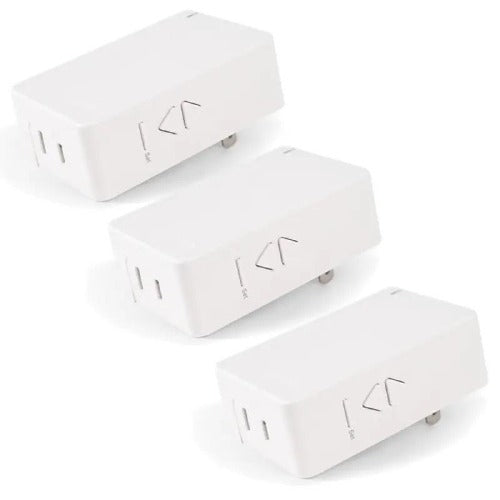

The Insteon LampLinc Plug-in Dual-Band Smart Lamp Dimmer lets you remotely turn on/off/dim your existing table lamps, floor lamps and other plug-in lights. You can even link your Insteon LampLinc Plug-in Dual-Band Smart Lamp Dimmer to other Insteon devices such as an open/close sensor, so the lights turn on when a door is open or closed. The Insteon LampLinc Plug-in Dual-Band Smart Lamp Dimmer helps you easily upgrade your existing lighting to smart lighting.

Features

• Remotely turn on/off/dim your lights


  The Insteon LampLinc Plug-in Dual-Band Smart Lamp Dimmer lets you remotely turn on/off/dim your existing table lamps, floor lamps and other plug-in lights, so you can turn off your bedside lamp from anywhere.


• Link other devices for convenience


  You can even link your Insteon LampLinc Plug-in Dual-Band Smart Lamp Dimmer to other Insteon devices such as an open/close sensor, so the lights turn on when a door is open or closed.


• Create Powerful Scenes


  You can set powerful scenes with the Insteon LampLinc Plug-in Dual-Band Smart Lamp Dimmer, so multiple lights or appliances turn on/off with a single button.


• Set Schedules


  You can set the Insteon LampLinc Plug-in Dual-Band Smart Lamp Dimmer to turn on/off your lights at a certain time, so you don't have to worry about turning on the Christmas lights when it gets dark.


• Dual Band Technology


  The Insteon LampLinc Plug-in Dual-Band Smart Lamp Dimmer uses dual band technology that uses both powerline and RF wireless communication simultaneously for the best possible communication reliability and doubles as wireless access point and Insteon repeater.

COMPATIBILITY

Works with

 *

*When connected to the Insteon Hub

SPECS

Technical Specifications

• Manufacturer: Insteon

• Manufacturer Product No.: 2457D2 - (Each)

• Patent No.: U.S. Patent No. 7,345,998. Protected under U.S. and foreign patents
• FCC ID: SBP2457D2A

• Industry Canada: 5202A-2457D2A

• Certification: Safety tested for use in USA and Canada (ETL #3193579)

• Warranty: 2 Years

• Status LED: Red and Green

• On-Levels: 32

• Preset On Level: Yes - levels from 1% to 100%

• Ramp Rate (full-ON to full-OFF):
• 0.125 to 9 seconds if programmed locally,
• 0.125 seconds to 8 minutes if programmed remotely via software
• Local Control: Insteon only

• Combo Mode Message Order: Insteon , Insteon cleanup

• Setup Memory: Non-volatile EEPROM

• Load Sensing: Yes

• Insteon Addresses: 1 hard-coded out of 16,777,216 possible

• Insteon Links: 417

• Insteon Powerline Frequency: 131.65 KHz

• Insteon Minimum Transmit Level: 3.2 Vpp into 5 Ohms

• Insteon Minimum Receive Level: 10 mVpp nominal

• Insteon Messages Repeated: Yes

• Radio Frequency: 915MHz

• Ramp Rates (full-ON to full-OFF):
• 0.125 to 9 seconds if programmed locally,
• 0.125 seconds to 8 minutes if programmed remotely via software
• Operating Conditions: Indoors, 32 to 104° F, up to 85% relative humidity
• Dimensions (H x W x D): 3.2" x 2.05" x 1.05"

• Weight: 3.3oz
• Voltage: 120 Volts AC +/- 10%, 60 Hertz, single phase

• Power Plug: 2-pin polarized

• Controlled Outlet: 2-pin polarized

• Pass-through Outlet: No

• Load Types: Plug-in incandescent lighting devices

• Load: Min. 5W, Max. 300 Watts

• Power Consumption: 0.84 Watts
• Includes:
• 1x - Insteon Plug-in Dimmer Module
• 1x - Quick Start Guide
