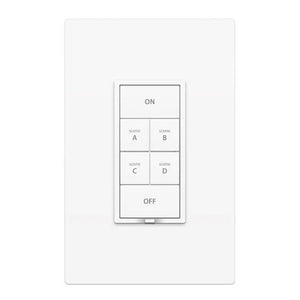

Insteon KeypadLinc 6-Button 2487S Dual-Band Scene Control Keypad Switch

Insteon KeypadLinc 6-Button Dual-Band Scene Control Keypad Switch

INS-SW-2487S-WT
  • $104.99


The Insteon KeypadLinc 6-Button Dual-Band Scene Control Keypad Switch is a three-in-one powerhouse of in-wall controller, 20-amp on/off switch and repeater allowing you to monitor and remotely control five individual devices or scenes. You can easily create whole-house lighting scenes in minutes and the built-in LEDs visually display the status of any linked device. The Insteon KeypadLinc 6-Button Dual-Band Scene Control Keypad Switch is an essential addition to your smart home!

Features

  • 3-in-1 Heavy-Duty 20-Amp Switch and Keypad Controller
    The Insteon KeypadLinc 6-Button Dual-Band Scene Control Keypad Switch is a three-in-one powerhouse of in-wall controller, 20-amp on/off switch and repeater, replacing your existing switch with the power to control devices throughout your home
  • Remote control multiple devices from one place
    You can remotely control and monitor five individual devices or scenes that are connected to the Insteon KeypadLinc 6-Button Dual-Band Scene Control Keypad Switch, giving you the ability to access your home from anywhere.
  • Create Powerful Scenes
    You can create elegant whole-home scenes to control multiple devices simultaneously with a single tap in minutes, helping to streamline and automate your home.
  • Built-in LEDs
    The Insteon KeypadLinc 6-Button Dual-Band Scene Control Keypad Switch has built-in LEDs, giving you a visual display the status of any linked device.
  • Dual Band Technology
    The Insteon KeypadLinc 6-Button Dual-Band Scene Control Keypad Switch uses dual band technology that uses both wired and wireless Insteon communication simultaneously for the best possible communication reliability and doubles as wireless access point and Insteon repeater.

COMPATIBILITY

Works with

Works with Amazon Alexa Works with Google Assistant*

*When connected to the Insteon Hub

SPECS

Technical Specifications

  • LED Indicator: One per button; LED reflects status of button or remote device(s)
  • Operation Modes: Insteon
  • Multi-Way Circuit Support: One Insteon 6 Button Keypad Controller with On/Off Switch controls load, Cross-Link any number of Keypad Insteon device or other Insteon Controllers.
  • On/Off Button Pairs: 1 Pair (6 button only)
  • Setup Memory: Non-volatile EEPROM
  • Audio Alert: Beeper, can be disabled
  • Insteon ID: 1
  • Max. Number of Scene Memberships: 8
  • Max. Number of Controlled Scenes: 8
  • Insteon Links: 417
  • Insteon Powerline Frequency: 131.65 KHz
  • Insteon Minimum Transmit Level: 3.2 Vpp into 5 Ohms
  • Insteon Minimum Receive Level: 10 mV
  • Insteon Messages Repeated: Yes
  • Radio Frequency: 915 MHz
  • Button Type: 6 mechanical momentary contact type buttons
  • Wire Nuts: 4 Included
  • Operating Conditions: Indoors, 32 to 104° F, up to 85% relative humidity
  • Dimensions: 4.2" H x 1.8" W x 1.7" D
  • Weight: 5.2 oz
  • Supply Voltage: 120 - 277 Volts AC, 60 Hertz, single phase
  • Power Wire Leads: 50Hz or 60Hz
  • Wires: 6", 12 AWG (LINE and LOAD) & 18 AWG (NEUTRAL), stranded, 600V, 105° C insulation, ends stripped and tinned, LINE (black), LOAD (red), NEUTRAL (white)
  • Ground Lead: 6", 12 AWG, stranded, bare copper
  • Load Types: Wired-in incandescent lighting and inductive loads
  • Load Types: No
  • Neutral Wire: Yes
  • Maximum Load: 20 Amps;1800 Watts (for incandescent loads)
  • Power Consumption: <1 Watt
  • Includes:
    • Insteon Keypad On/Off, 6-Button
    • Quick Start Guide
    • Mounting Screws
    • Wire Nuts

INSTALLATION

Installation Guide

Quick Start Guide

Owner's Manual
