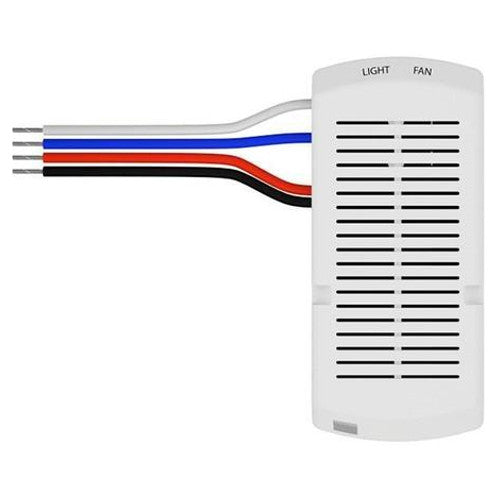

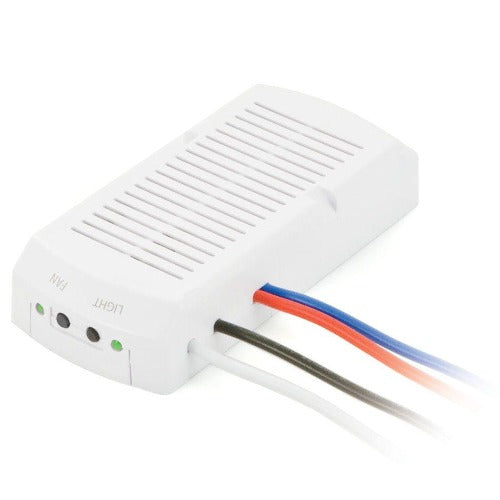

The Insteon FanLinc Dual-Band Ceiling Fan and Light Controller lets you easily integrate both fan speed and light control within your Insteon network. It is a dual-load responder simultaneously acting as a light fixture dimmer plus a 4 speed fan controller (Off, Low, Medium & High).

Features

• Add your ceiling fan to your Insteon network


  The Insteon FanLinc Dual-Band Ceiling Fan and Light Controller lets you easily integrate your ceiling fan and lights within your Insteon network to control your fan speed and adjust the brightness of the attached lights all from your smartphone.


• 2-in-1 dimmer and fan speed controller


  The Insteon FanLinc Dual-Band Ceiling Fan and Light Controller is a dual-load responder, so it acts as a light fixture dimmer and fan speed controller.

• Full Dimming Control


  The Insteon FanLinc Dual-Band Ceiling Fan and Light Controller offers full dimming control of your lights.


• 4 Fan Speeds


  The Insteon FanLinc Dual-Band Ceiling Fan and Light Controller offers 4 fan speeds (Off, Low, Medium & High) to suit your needs.

COMPATIBILITY

Works with

 *

*When connected to the Insteon Hub

Compatible with ceiling fans with an AC motor. Ceiling fans with DC-motor and built-in remote control motors are not compatible.

SPECS

Technical Specifications

• Manufacturer: Insteon

• Manufacturer Product No.: 2475F - (Each)

• Warranty: 2 Years

• Insteon ID: 1

• Scenes: 2 responder groups

• Maximum Scene Links: 400 (combined controller + responder)

• Scene Commands Supported as Responder:
• On | Off
• Brighten | Dim
• Fast On | Fast Off
• Software Configurable: Yes

• Ramp Rates (full-ON to full-OFF):
• 0.125 to 9 seconds if programmed locally,
• 0.125 seconds to 8 minutes if programmed remotely via software
• RF Range: 100 ft. (depending on your home’s construction)

• Beeper: Yes

• Operation - Light Dimmer
• Insteon: Scene/Group 1
• Brightness Levels: 32
• Dimmer Control:
• On | Off
• Fast On | Fast Off
• Dim | Brights
• LED Dual Color:
• Green & Red
• Green = On
• Red = Off
• Setup = Varies
• Set Button: Black
• Operation - Fan Control

• Insteon: Yea
• Fan Speeds: 4 (Off, Slow, Medium & Fast)
• Fan Control:
• On | Off
• Fast On | Fast Off
• Dim | Brights
• Brightness:
• Off
• 1% - 49%
• 50% - 99%
• 100%
• Fan Is: Off | Slow | Medium | Fast
• LED:
• Dual Color, Green & Red Green = On
• Red = Off
• Setup = Varies
• Set Button: Black
• Wires: 4, 16 gauge

• Wire Colors:
• Black - Hot / Line
• Blue - Light / Load
• Red - Fan / Load
• White - Neutral
• Case Color: White

• Plastic: UV Stabilized ABS

• Dimensions: 4.5" x 2.0" x .875" (114mm x 50.8mm x 22.2mm)

• Weight: 112g (0.25 lb)

• Operating Environment: Indoors

• Retains all settings without power: Yes, all saved in Non-volatile EEPROM

• Voltage: 120VAC, Single Phase

• Frequency: 60Hz

• Maximum Dimmer Load: 300 Watts

• Lighting Load Types: Incandescent only

• Maximum Fan Load: 1 Amp

• Standby Power Consumption: < 1 Watt

• Safety Approved: ETL
• Includes:
• 1x - Insteon Ceiling Fan and Light Controller Module
• 1x - Quick Start Guide
• 1x - Cable Tie
• 4x - Wire Nuts
