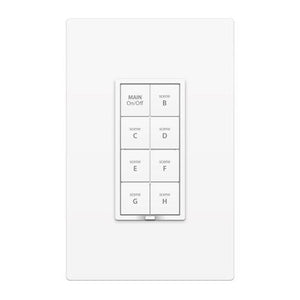

Insteon 8-Button 2334-223 Dual-Band Keypad Dimmer

Insteon 8-Button Dual-Band Keypad Dimmer

INS-DM-2334-222-WT
  • $99.99


The Insteon 8-Button Dual-Band Keypad Dimmer is a powerful combination of 600W wall dimmer and eight button remote controller allowing you to monitor and remotely control eight individual devices or scenes. You can easily create whole-house lighting scenes in minutes and the built-in LEDs visually display the status of any linked device. The Insteon 8-Button Dual-Band Keypad Dimmer is an essential addition to your smart home!

Features

  • 2-in-1 wall dimmer and remote controller
    The Insteon 8-Button Dual-Band Keypad Dimmer is a powerful combination of 600W wall dimmer and eight button remote controller, meaning you can keep control of your light fixture while simultaneously adding remote control of other Insteon devices.
  • Remote control multiple devices from one place
    You can remotely control and monitor eight individual devices or scenes that are connected to the Insteon 8-Button Dual-Band Keypad Dimmer, giving you the ability to access your home from anywhere.
  • Create Powerful Scenes
    You can create elegant whole-home scenes to control multiple devices simultaneously with a single tap in minutes, helping to streamline and automate your home.
  • Built-in LEDs
    The Insteon 8-Button Dual-Band Keypad Dimmer has built-in LEDs, giving you a visual display the status of any linked device.
  • Dual Band Technology
    The Insteon 8-Button Dual-Band Keypad Dimmer uses dual band technology that uses both existing AC wiring and wireless RF simultaneously for the best possible communication reliability and doubles as wireless access point and Insteon repeater.

COMPATIBILITY

Works with

Works with Amazon Alexa Works with Google Assistant*

*When connected to the Insteon Hub

SPECS

Technical Specifications

  • Insteon RF: Yes
  • Operation Modes: Insteon
  • RF Frequency: 915.0 MHz (US/Canada)
  • RF Range: Up to 150 ft (50 meters) Depending on your home’s construction
  • Insteon PowerLine: Yes
  • Insteon Controller: Yes
  • Maximum Controller Groups/Scenes: Beeper, can be disabled
  • Maximum Controller Groups/Scenes: 8
  • Controller Commands Supported:
    • On | Off
    • Begin Brighten | Begin Dim
    • End Brighten | End Dim
    • Fast On | Fast Off
  • Insteon Responder: Yes
  • Maximum Responder Scene Memberships: 8
  • Responder Commands Supported:
    • On | Off
    • Fast On | Fast Off
    • Begin Bright | Begin Dim
    • End Bright | End Dim
    • Incremental Bright | Incremental Dim
    • Set to XX Level
    • Beep
  • Maximum total Insteon links: 400
  • Programming lockout: Yes
  • Ramp Rates (full-On to full-Off):
    • 0.125 to 9 seconds if programmed locally,
    • 0.125 seconds to 8 minutes if programmed remotely via software
  • Insteon for iOS: Main/Load group only
  • Insteon for Android: Main/Load group only
  • Insteon for Browsers: Main/Load group only
  • Dimmable LED's: Yes
  • Installation: Single (or multi) gang junction box
  • UV Stabilized: Yes
  • Operating Temperature: 32-104° F (0-40° C)
  • Operating Humidity: 0%-85% relative humidity
  • Weather Resistance: Indoor use only
  • Depth Into Wall Box: 1.25"(3.18 cm)
  • Dimensions: 4.1"H x 1.8"W x 1.2"D (10.4 cm H x 4.6 cm W x 3.0 cm D)
  • Weight: 0.3 lbs (.1 kg)
  • Supply Voltage: 100-277VAC +/- 10%
  • Supply Frequency: 50Hz or 60Hz
  • Wires: 6"(15 cm), 16 AWG, stranded, 600V, 225° F (105° C) insulation, ends stripped and tinned, Line (black), Load (red), Neutral (white)
  • Minimum. Wire Size: 16 AWG
  • Neutral Wire: Required
  • Load Types: Wired-in incandescent lighting and inductive Loads
  • Maximum Load: 600 Watts (uses 16 Amp Triac dimmer)
  • Multi-Gang De-rating: 200 watts for each immediately adjacent electronic
  • dimmer
  • All Settings Saved Through Power Outage: Yes, all saved in Non-volatile EEPROM
  • Power Consumption: <1 Watt
  • Includes:
    • 1x - Insteon Keypad Dimmer, 8-Button
    • 1x - Quick Start Guide
    • 2x - Mounting Screws
    • 4x - Wire Nuts

INSTALLATION

Installation Guide

Quick Start Guide

Owner's Manual
