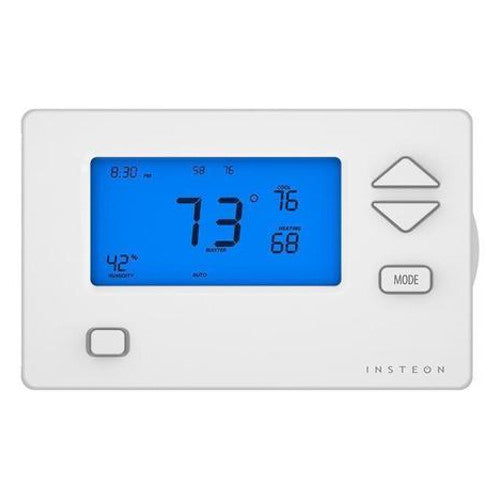

The Insteon 7-Day Programmable Smart Thermostat is a 7 day / 4 event programmable thermostat that can be remote controlled from your smartphone whether you're on the couch or on the road. You can even link your Insteon 7-Day Programmable Smart Thermostat to other Insteon devices to automatically trigger ceiling fans or dehumidifiers based on temperature or humidity for true home automation.

Features

• Remote control your thermostat from anywhere


  The Insteon 7-Day Programmable Smart Thermostat is remote controllable from anywhere from your smartphone, so you can heat up or cool down your home beforehand, so it's the perfect temperature the moment you step in the door.

• Link other devices for full home automation


  You can link your Insteon 7-Day Programmable Smart Thermostat to other Insteon devices to automatically trigger ceiling fans or dehumidifiers based on temperature or humidity for true home automation.


• 7 day / 4 event programmable


  The Insteon 7-Day Programmable Smart Thermostat is a 7 day / 4 event programmable thermostat that allows you to set heating and cooling schedules for every day of the week.


• Works with most heating and cooling systems


  The Insteon 7-Day Programmable Smart Thermostat replaces standard HVAC thermostats and works with most heating and cooling systems found in homes and many businesses.

COMPATIBILITY

Works with

 *

*When connected to the Insteon Hub

Heating System

Works with heat/cool systems, including advanced 2-stage systems. Does not work with heat pumps or millivolt systems.

SPECS

Technical Specifications

• Manufacturer: Insteon
• Patent No.: U.S. Patent No. 7,345,998. Protected under U.S. and foreign patents
• Certifications: FCC, IC Canada, EN International

• FCC ID: SBP2441T

• Warranty: 2 Years

• Powerline Mesh Repeater: No

• Insteon RF Mesh Repeater: Yes

• Insteon Controller: Yes

• Insteon Responder: Yes

• Maximum Links/Scenes: 400

• Status LED:
• Red when Heating is active,
• Green when Cooling is active,
• Off when when neither mode is active,
• blinks Red or Green during setup
• LED Brightness: LED can be enabled or disabled locally or via software

• Local Control: Yes

• Commands Supported as Controller: On | Off

• Commands Supported as Responder:
• On | Off
• Beep
• Software Configurable: Yes

• RF Range: 50 ft. (depending on your home’s construction)

• Phase Detect Beacon: No, RF only device

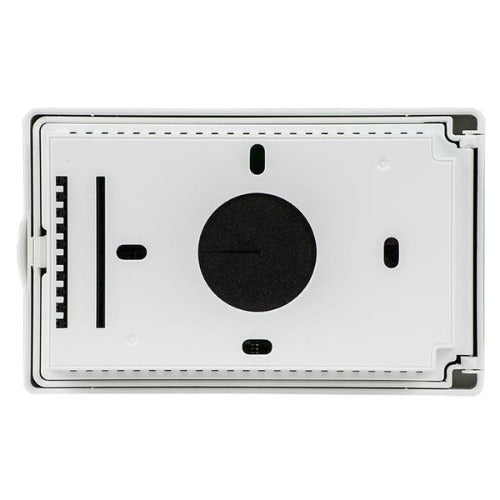

• Mounting Wall: mount

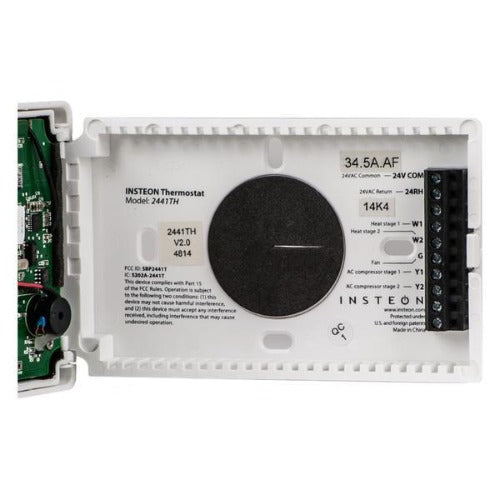

• Wire Connections:
• Common 24V
• Power 24V
• Heat 1
• Heat 2
• Fan
• Cooling 1
• Cooling 2
• Screw Clamp Connections: Yes, 10 position

• Case Color: White

• Plastic: UV stabilized ABS

• Beeper: Yes

• Beep on Button Press: Optional (off by default)

• LED: 1 dual-color Red/Green

• Dimensions: 5.7"x 3.6"x 1.1"(14.5cm x 9.1 cm x 2.8cm)

• Operating Environment: Indoors

• Operating Temperature Range: 39° to 104°F (4°to 40°C)

• Operating Humidity Range: 0-90% relative humidity

• Storage Conditions: -4° F to +158° F (-20° C to 70° C)
• Voltage: 24VAC (supplied by furnace or air handler)

• Frequency: 50Hz/60Hz

• Retains All Settings Without Power: Yes, saved in non-volatile EEPROM

• Standby Power Consumption: < 1 watt
• Includes:

• 1x - Insteon Thermostat
• 1x - Quick Start Guide
• 1x - Mounting Screws
• 1x - Anchors
