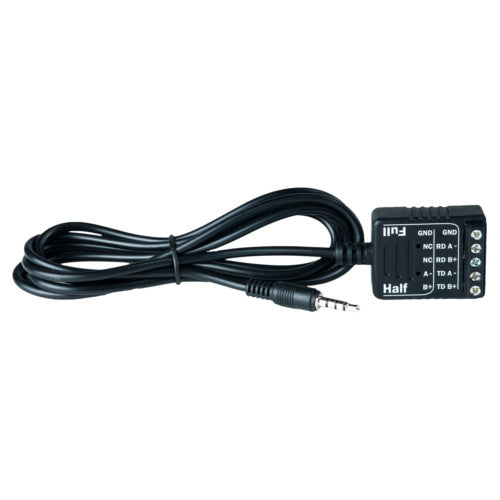

Global Caché Flex Link RS485 Serial Cable

Global Caché Flex Link RS485 Serial Cable

GBC-HB-FLC-SL-485-BK
  • $39.99

Only 2 left!

The Global Caché Flex Link RS485 Serial Cable connects to your iTach Flex Module to enable IP/WiFi control for all RS485 serial components. The RS485 setting includes Baud Rate, Duplex, Parity, Data Bits, and Stop Bits. The RS485 serial cable is both 4-wire (full duplex) and 2-wire (half duplex) capable, duplex is unique to RS485 serial cables.

Features

  • Four wire (full duplex) and Two wire (half duplex) capable.
  • 5 pin screw terminal block.
  • Connector at 90° angle for easy fit.
  • 5 ft (1.5 meters) cable.

COMPATIBILITY

Works with

Works with Global Caché iTach Flex IP or Wi-Fi controllers.

SPECS

Technical Specifications

  • Setup
    • Configurable using hardware jumpers and through
    • Flex integrated web server or software API
  • Serial Outputs
    • Supports standard 8 data bit serial.
      • RS485:
        • Four wire (full duplex) and Two wire (half duplex) capable.
  • Serial Configurations
    • Flex Link Serial cables are configurable with the following settings:
    • Baud Rate: 300 baud to 115200 Kbaud.
    • Parity: Even, Odd, or None.
    • Stop bits: 1 or 2.RS232:
    • Flow Control: Enable hardware RTS/CTS flow control.
    • Gender: Allows configuration of cable gender. Allows for null modem and straight through cable creation.
    • RS485:
      • Duplex: full duplex or half duplex.
      • RS422 compatible.
  • Cable/Connector
    • 3.5 mm four conductor jack to Flex Link Port on iTach Flex devices.
    • RS485:
      • 5 pin screw terminal block.
      • Connector at 90° angle for easy fit.
      • 5 ft (1.5 meters) cable.
      • No power supply required.
    • Dimensions
      • RS485: 1.5” x 1.2” x .7”
    • Warranty: Two year limited warranty
    • Support available via phone, email, and web portal

    INSTALLATION

    Installation Guide

    Quick Start Guide
