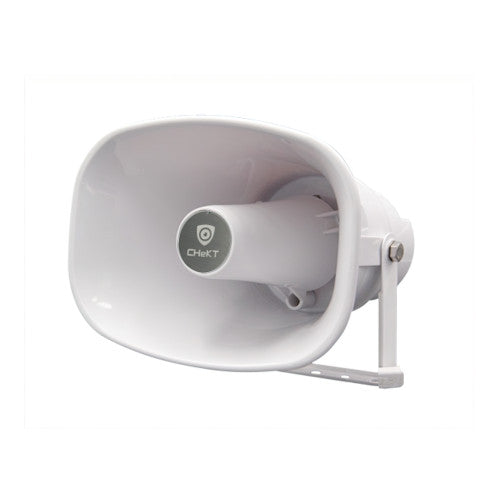

The CHeKT Indoor/Outdoor 30W IP Horn Speaker Broadcast clear announcements on your property with the Optex CHeKT 30W IP Horn Outdoor Speaker. Using up to 120 decibels, this IP Horn Speaker is the ideal solution for broadcasting announcements or pre-recorded messages during an emergency situation.

Features

• 30W Output Power

  Provides clear and loud audio, suitable for a variety of applications.

• IP-Rated Weatherproof Design

  IP66 or higher, ensuring protection against dust, heavy rain, and harsh outdoor conditions.

• Network Integration

  Equipped with IP functionality to connect directly to your network via Ethernet.

• Power over Ethernet (PoE)

  Supports PoE for simple installation, requiring only a single cable for power and data transmission.

• Wide Audio Range

  Supports PoE for simple installation, requiring only a single cable for power and data transmission.

COMPATIBILITY

Protocol SIP, ONVIF, HTTP, IPv4, DHCP, RTSP, RTP, RTCP, TCP, UDP, ARP, FTP, TFTP, NFS, NTP

Works with

SPECS

Technical Specifications

• Power supply: PoE or DC12V~24V
• Alarm Input: 1ch, when receiving a switch alarm, it can play a ringtone or a custom sound
• Codec: OPUS 48 kHz, MP3 44.1 kHz, G.722 ADPCM 16 kHz, G.711 PCMU 8 kHz, G.711 PCMA 8 kHz
• Max SPL: 120dB
• Frequency response: 300Hz~8kHz
• Frequency range:500-2kHz +/- 10 dB, 400-12kHz +/- 20dB
• Harmonic distortion: 0.1@1kHz
• Signal to Noise ratio: 91dB
• VoIP: SIP protocol for VoIP supported, integrated with SIP/PBX, 2 SIP accounts, SIP Direct IP Call, RTP Multicast
• Operating temperature: -30°C to 60°C, less than 85% RH
• Waterproofing: IP67 water-proof
• Dimensions:285mm x 205mm x 290mm (11.2' x , 8.07' x 11.42'), 2 KG (4.41 lbs)
