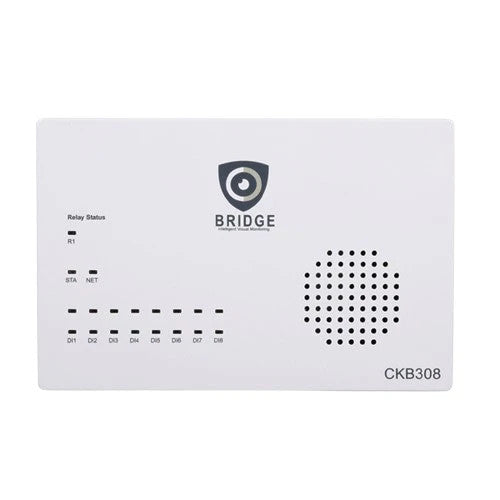

CHeKT 8-Channel Visual Verification Bridge

CHeKT 8-Channel Visual Verification Bridge

CKT-CM-CKB308-WT
  • $439.99

Only 6 left!

This CHeKT 8-Channel Visual Verification Bridge is designed to improve security systems by connecting video surveillance with alarms to provide real-time video confirmation. This bridge has PoE and 12V DC power, 8 NO/NC alarm inputs, and 8 camera channels to match the cameras to the alarm inputs for accurate event creation using video verification. It converts video analytics into alarm reporting zones, sending actionable alerts to central stations.

Features

  • 8-Channel Support
    Connects up to eight IP or analog cameras for visual verification.
  • Alarm Panel Integration
    Interfaces with standard intrusion alarm panels, allowing video clips or live video to be sent to central monitoring stations upon an alarm trigger.
  • Cloud-Based Platform
    Works with the CHeKT cloud service, offering remote management, configuration, and video storage.
  • Customizable Verification Rules
    Allows customization of verification workflows, such as sending event-based clips to monitoring stations or mobile devices.
  • Event Recording
    Captures and stores video clips during an alarm event for review by operators.
  • Live Video Feeds
    Enables real-time video feeds for immediate situational awareness.

COMPATIBILITY

Protocol RJ-4510/100/BASE-T Connection

Works with

SPECS

Technical Specifications

  • Digital Alarm Inputs: 8 Physical Input Zones
  • 1 x Relay Output (NO/NC): 100mAmps @24v DC
  • Audio Output: 1/8″ (3.5mm) Line Level Output (non-amplified), IP Audio Integrations.
  • Video Compression Support: H.264
  • Video Authentication Support: ONVIF, RTSP, HTTP
  • Video Transmission Security: TLS/SSL Encryption to Cloud and Central Station
  • Video Analytics Support: ONVIF Event Messaging Protocol, API Calls
  • Power Supply: PoE & 12v DC
  • Physical Input Voltage Range: 0-12v DC (All Ground Termals Are Common)
  • Operating Temperature: 0C ~ +40°C (32°F ~ 85°F) / Less than 85% RH
  • Dimensions: 82mm x 100.7mm x 36mm (3.2″ x 3.9″ x 1.4″)

INSTALLATION

Installation Guide

Manual
