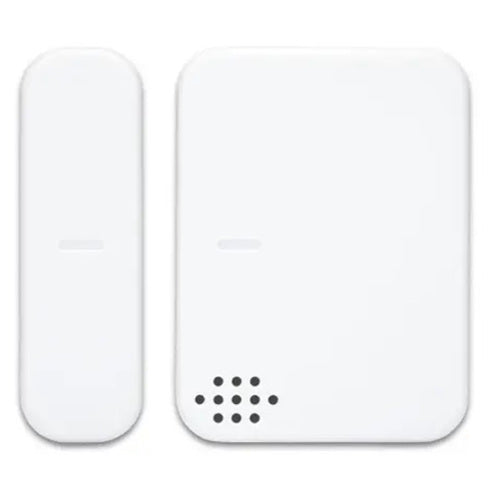

Centralite Zigbee Micro Smart Door SensorCTL-SS-3323-WT
The Centralite Zigbee Micro Smart Door Sensor detects the opening and closing of doors and windows, so you can keep tabs on who's coming and going in your home even when you're not home. You can mount it on cabinets or drawers and is ideal for gun storage, medical/pill storage or alcohol storage cabinet, or anywhere else you need an extra eye. The Centralite Zigbee Micro Smart Door Sensor is an affordable way to add automation, security, and occupancy sensing to existing connected home systems.
Receive alerts when doors/windows open or closeThe Centralite Zigbee Micro Smart Door Sensor detects and sends notifications when doors/windows open or close, so you'll know when the kids get home from school or when a repair man leaves.
Set powerful scenesYou can create powerful scenes such as a “welcome” or “goodbye” scenes when you arrive or leave home, such as having the thermostat turn up the heat and turn on the front lights when you come home. You can also trigger "security" scenes to sound the alarm and alert police if your doors/windows are opened unexpectedly.
Automate lights in closets and small roomsYou can place the Centralite Zigbee Micro Smart Door Sensor on closet and pantry doors to trigger the lights to automatically turn on and off, providing extra visibility and safety.
Hall Effect SensorThe Hall effect sensor eliminates the need for a reed switch, so has no moving parts, thereby increasing sensitivity, reliability, and battery life.
Easy-to-installThe Centralite Zigbee Micro Smart Door Sensor is quick and easy-to-install with a mounting plate that can be installed using either adhesive strips or mounting screws and the sensor simply slides into place on the mount.
Magnet distance of up to 1”The Centralite Zigbee Micro Smart Door Sensor has a magnet distance of up to 1”, giving you more options where you can install the door/window sensor.
Compatible with All ZigBee HA 1.2 Platforms
- Time Warner IntelligentHome
- Cox Homelife
- Bright House Networks Home Security and Automation
- Rogers Home Monitoring
- Rated: 3V
- Battery: CR-2450 (1x)
- Battery Life: Up to 2 years
- Operating Temperature: 0° to 40°C
- Temperature: -20° to 50°C
- Humidity Range: 0 to 90% RH. (non-condensing)
- Protocol: ZigBee HA 1.2
- TX Strength: +8 dBm
- RF Channels: 16
- Range: 130+ ft. (40+ m) L.O.S.
- Temp Accuracy: ±0.4 °C (max), –10 to 85 °C
- 1x - 3-Series Micro Door Sensor
- 1x - Magnet
- 2x - Mounting Brackets
- 1x - Mounting Adhesive
- 1x - CR-2450 Battery (pre-installed)
- 1x - Quick Start Guide
Step 1: Open ZigBee Network for JoiningUsing your controller or hub’s interface, enable the ZigBee network for joining.
Step 2: Pull Tab from Side of SensorPull the small plastic tab out from the side of the sensor and it will immediately begin searching for a network to join.
Step 2: Finish Joining at Hub (optional)Some hubs and controllers require additional steps such as naming or categorizing the device.
