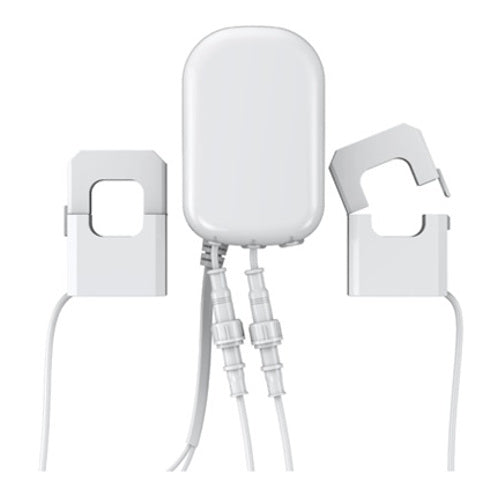

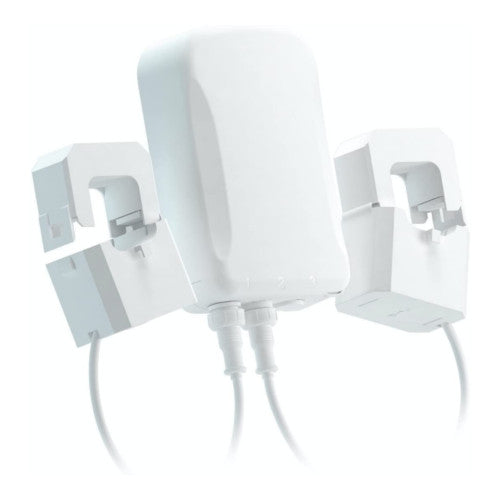

Aeotec Z-Wave Smart Energy Meter

AEO-OT-ZW095-WT
  • $139.99


The Aeotec Z-Wave Smart Energy Meter keeps track of your home's electricity usage in watts or kilowatt-hours with 99% accuracy. You can monitor your home's energy consumption and record up to 200 amps of your home’s electricity use in real-time helping you identify and diagnose which electronics in your home are costing you the most. Whether it’s your lighting, your hot water system or anything else, you’ll then be able to take actionable steps to reduce your excess energy usage to save your bottom line - your energy bill.

Features

  • Track your home energy usage with 99% accuracy
    Track of your home's electricity usage in watts or kilowatt-hours with 99% accuracy and record up to 200 amps of your home’s electricity use in real-time, helping you manage your energy consumption more efficiently.
  • Save money on your energy bill
    You can monitor your home's energy consumption in real-time helping you identify and diagnose which electronics in your home are costing you the most and take actionable steps to reduce your excess energy usage to save your bottom line - your energy bill.
  • Wireless Range that extends through walls
    The Aeotec Z-Wave Smart Energy Meter can transmit your home’s electricity use over a distance of 492 feet / 150 metres without interference, ensuring a correct energy reading every time.
  • Secure Data Transmission
    Your energy data is wirelessly transmitted and encrypted using banking-grade AES-128 encryption and your data is stored by your Z-Wave hub where you own the data and only you can analyze it.
  • Crafted for the US, 2-Phase electrical system

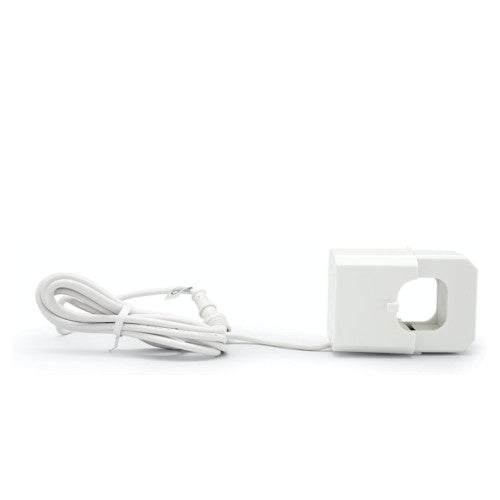

    With 2 clamps and 1 monitor, it is built to connect with a 110 volt, US standard electrical system. Each clamp detects one load / circuit and reports the real-time power consumption to your Z-Wave smart home control gateway.

COMPATIBILITY

Protocol

Z-Wave Plus

Works with

Compatible with certified Z-Wave gateways including: SmartThings, Indigo 7, Home Seer, Vera, Open Z-Wave, Open HUB, Zipabox, Qolsys IQ Panel, Home Assistant and more.

SPECS

Technical Specifications

  • Name: Home Energy Meter Gen5
  • Model number: ZW095
  • Beaming: Yes
  • Repeating: Yes
  • AES128 Security: Yes
  • Powering Method:
    • US - Plugin
    • EU/AU - Wire In
  • Input (voltage, frequency, max current consumption):
    • 120V~, 60Hz, 20mA (USA version, 2P)
    • 230V~, 50Hz, 10mA (EU/AU version, 1P/3P4)
    • 380V~, 50Hz, 18mA (EU/AU version, 3P3)
  • Standby consumption: < 1.8W.
  • Measure range of voltage:
    • 80V~ to 150V~ (USA version, 2P)
    • 180V~ to 260V~ (EU/AU version, 1P/3P4)
    • 220V~ to 400V~ (EU/AU version, 3P3)
  • Measure range of current: 0A to 200A.
  • Measurement Accuracy: Over 99%.
  • Operating humidity: 8% to 80%.
  • Operating temperature:
    • 0°C to 40°C
    • 32°F to 104°F.
  • Operating distance:
    • Up to 427 feet outdoors.
    • Up to 130 metres outdoors.
  • Includes: Home Energy Meter Gen5, Quick start guide

INSTALLATION

Installation Guide

Manual
