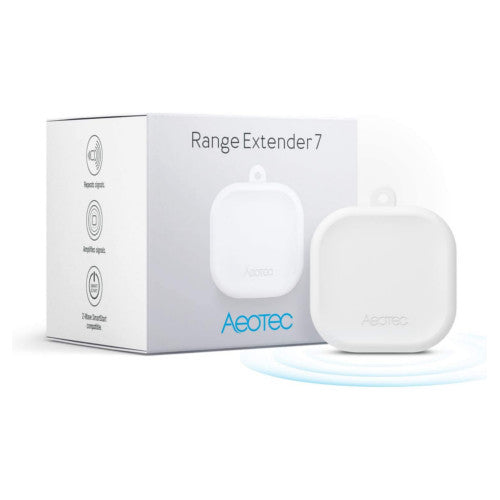

Aeotec Range Extender 7

  • $42.99

The Aeotec Range Extender 7 ensures that your smart home is always connected by picking up and amplifying weak Z-Wave signals being sent in your home to makes sure your smart home remains connected at all times. This extender will ensure that your connection is reliable and with easy plug-and-play installation means that you can take full advantage of your smart home at all times.

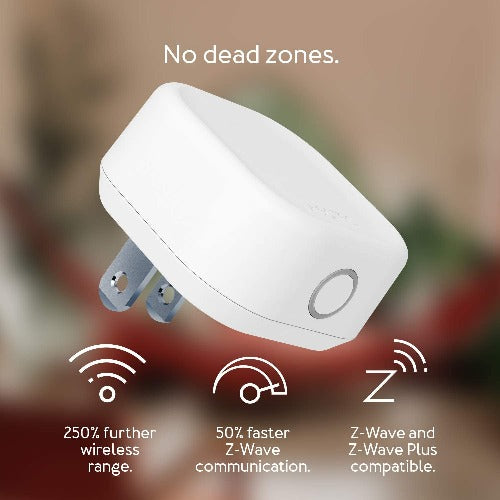

  • Amplifies Weak Signals to increase range
    The Aeotec Range Extender 7 improves the signal strength of Z-Wave networks by extending the signal and range. It does this by picking up and amplifying any weak signals from transmitters and controllers to their intended recipient and works well in large homes or businesses.

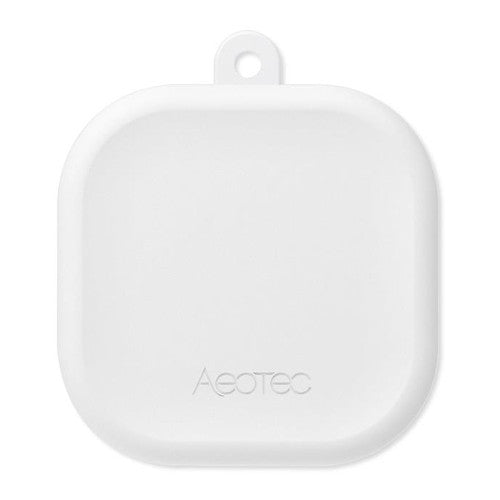

  • Compact Design
    The extender plug has a compact design, so you can boost your network without covering and sacrificing a second plug.

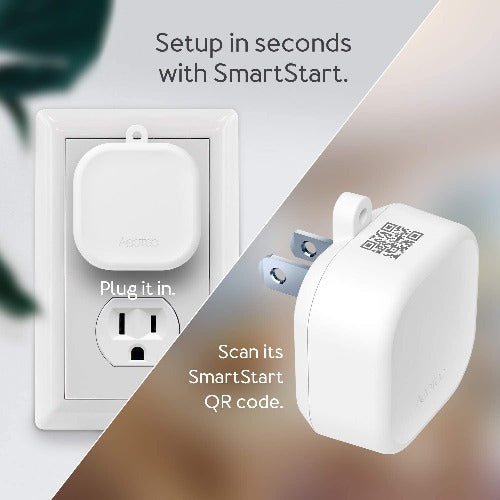

  • Easy Installation
    Simply plug the extender in any outlet and it will start working on extending the signal of the room or area.
  • Dedicated Repeater
    The Aeotec Range Extender 7 is dedicated to doing one thing, but doing it the best - capturing, amplifying, and repeating weak and lagging Z-Wave signals.
  • Z-Wave Plus Compatible
    The Aeotec Range Extender 7 features the latest version of Z-wave making it compatible with all new and older generations of Z-Wave technology



Z-Wave Z-Wave Plus


Technical Specifications

  • Name: Range Extender 7
  • Model number: ZW189-A01
  • Product Dimensions: 53.2 x 46 x 40 mm
  • Package Dimensions: 76 x 68 x 58 mm
  • Product Weight: 38g
  • Total Package Weight: 66 g
  • UPC/EAN: 810667025274
  • Smart Start: Yes
  • Repeater: Yes
  • Beaming Capable: Yes
  • Security Supported:
    • S2 Unauthenticated
    • S2 Authenticated
  • Power Consumption: 0.6W
  • Operating temperature: 32°F to 104°F/0°C to 40°C.
  • Relative humidity: 8% to 80%.
  • Operating distance:
    • More than 50 meters indoors / More than 164 feet indoors.
    • Up to 150 meters outdoors / Up to 492 feet outdoors.
  • Waterproof and dust rating: IP20 under IEC 60529
  • AC Input: 120V 60Hz, Max: 100mA 908.42MHz
  • Safety Certifications: FCC/ETL
  • Plug Specifications: Type A
