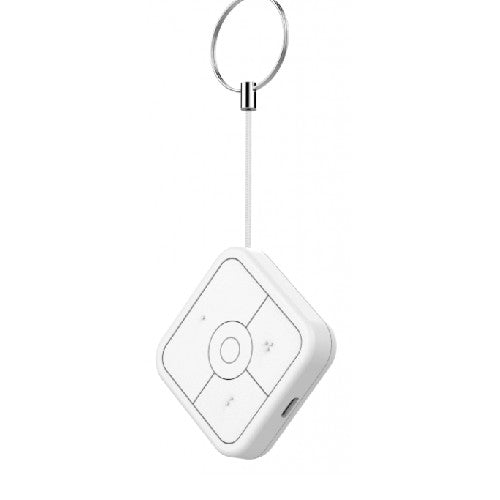

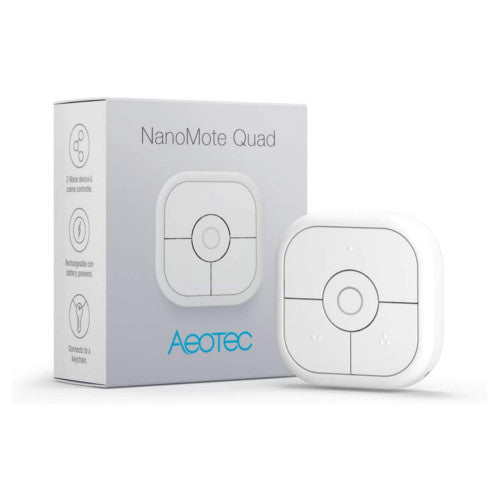

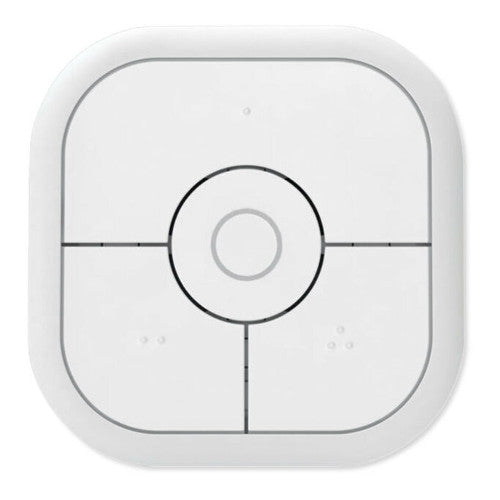

Aeotec NanoMote Quad Z-Wave Remote Controller

AEO-HB-ZWA003-WT
  • $49.99

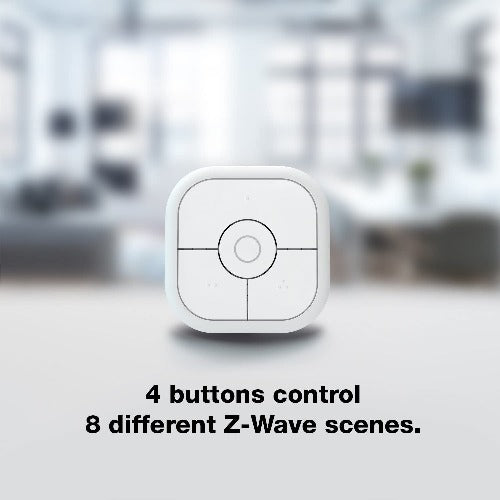

The Aeotec NanoMote Quad Z-Wave Remote Controller makes accessing your smart home even easier with the push of a button (or 4). The NanoMote Quad is a mountable or portable remote controller that has 4 buttons capable of controlling up to 8 autopilot scenes including your lighting, heat and music among its other functions, making it a versatile addition to any smart home.

Features

  • Control your smart home at the push of a button
    The NanoMote Quad is a mountable or portable remote controller that has 4 buttons capable of controlling up to 8 autopilot scenes including your lighting, heat and music among its other functions making accessing your smart home even easier.
  • Enhance your security
    When you integrate the Aeotec NanoMote Quad Z-Wave Remote Controller into your home automation, you will enhance the security. You can open/close your doors with the NanoMate, meaning you can keep your home secure at all times.
  • Small and compact design
    The Aeotec NanoMote Quad Z-Wave Remote Controller is small and compact and can be easily mounted anywhere or carried in your pocket or keychain, making accessing your smart home even more convenient.
  • Wireless Range
    The Aeotec NanoMote Quad Z-Wave Remote Controller can be used both inside and outside and can communicate over a distance of around 328 feet/ 100 meters, allowing for long reach communication.
  • Rechargeable and replaceable battery
    You can easily recharge your NanoMote with a USB and when the time comes you can replace the batteries easily.
  • Inbuilt PIN Lock
    The Aeotec NanoMote Quad Z-Wave Remote Controller comes with an inbuilt PIN lock, ensuring you don't accidentally activate your smart home. When you hold down your secret combination of buttons, you can disable or enable your NanoMote.

COMPATIBILITY

Protocol

Z-Wave Plus

SPECS

Technical Specifications

  • Name: NanoMote Quad
  • Model number: ZWA003
  • Dimensions: 50 x 50 x 14.5 mm
  • Repeater: No
  • Beaming: No
  • Z-Wave Plus: Yes
  • Z-Wave S2 Framwork: Yes
  • Number of buttons: 4
  • Press functions per Group Association:
    • Tap
    • Press and Hold
  • Press functions per Scene use:
    • Tap
    • Press and Hold
  • Button Identification for scene use:
    • Button 1 Tap = Scene ID 1
    • Button 1 Press and hold = Scene ID 2
    • Button 2 Tap = Scene ID 3
    • Button 2 Press and hold = Scene ID 4
    • Button 3 Tap = Scene ID 5
    • Button 3 Press and hold = Scene ID 6
    • Button 4 Tap = Scene ID 7
    • Button 4 Press and hold = Scene ID 8
  • Control use:
    • Scene Control
    • Group Association
  • Power supply: Rechargeable LIR2450, 3.6V.
  • Battery Life: 3 months from full charge.
    • Working Current: 36mA
    • Standby Current: 2.5 uA
  • Battery charger input:
    • Plug type: Micro USB port,
    • Voltage: DC 5V±0.5V,
    • Current: max 1A.
  • Operating temperature: 0°C to 40°C.
  • Storage temperature: -10°C to 50°C.
  • Operating humidity: 8% to 80%.
  • Storage humidity: 0% - 85%
  • Z-Wave Repeater: No
  • Operating distance:
    • Up to 120 metres outdoors. (394 ft)
    • Up to 30 metres indoors. (98ft)

INSTALLATION

Installation Guide

User Manual
