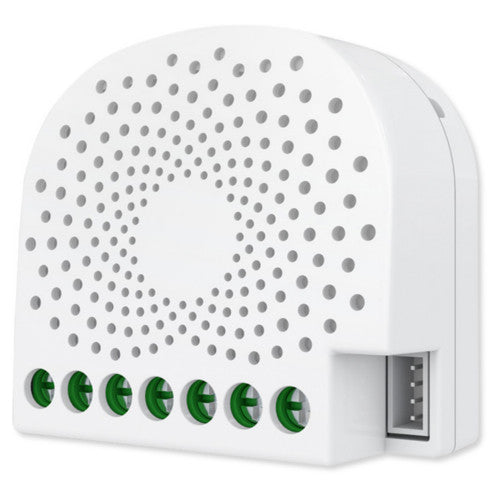

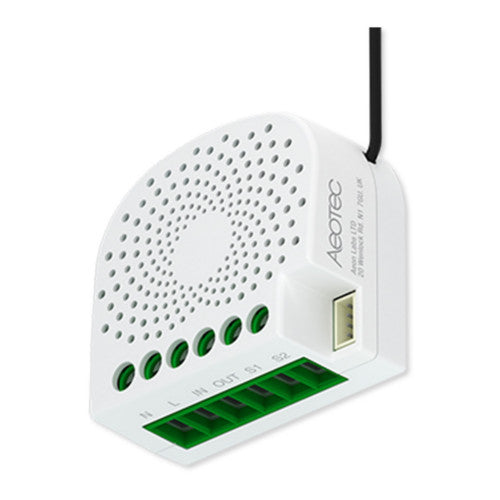

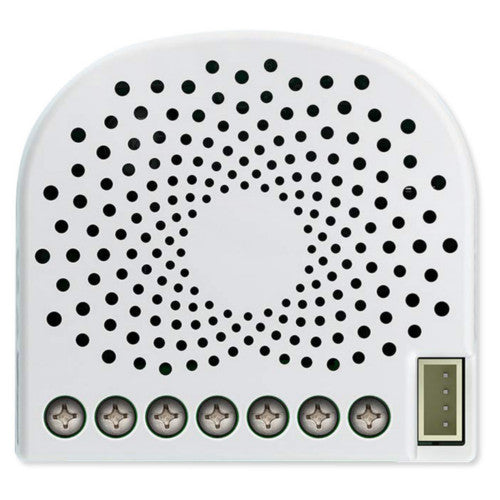

The Aeotec Nano Shutter allows you to add Z-Wave control to your motorized home device to provide remote control and automated open-stop-close control of motorized window shades, blinds, curtains, or gates. You can also add the Aeotec Nano Shutter to a schedule or include it in a smart home scene for a truly automated experience.

Features

• Remote control and automate your shades, blinds, curtain or gates


  The Aeotec Nano Shutter allows you to add Z-Wave control to your motorized home device to provide remote control and automated open-stop-close control of motorized window shades, blinds, curtains, or gates up to 2.5 A.

• Set schedules or scenes


  The Aeotec Nano Shutter can be added to a schedule or scene once included to your smart home hub, for a truly automated experience.


• Wired to motor or wall switch

  The Aeotec Nano Shutter is 60% smaller than the Micro Switch, so it can be wired directly to the motor or be wired to the wall switch that controls the motor.


• Connect to WallSwipe for touch and gesture control


  The Aeotec Nano Shutter can be connected to the Aeotec WallSwipe (sold separately) for touch and gesture control.


• Secure S2 Techology


  The Aeotec Nano Shutter has encrypted signal and S2 technology for super safe wireless communication.

NOTE: Neutral wire required

COMPATIBILITY

Protocol

Works with

 *

*When connected to compatible Z-Wave automation hub

SPECS

Technical Specifications

• Z-Wave Frequency: 908.42 MHz (US)
• Power: 120 V AC / 24 V DC
• Maximum load: 2.5 A
• Minimum Standby Power: 0.8 W
• Wireless Range: Up to 100 feet line of sight
• Dimensions: 1.7" x 1.6" x 0.8"
• Weight: 2.5 oz
• Installation: Indoor Use Only
