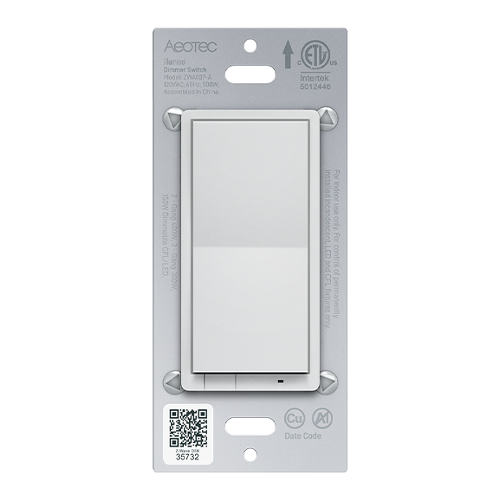

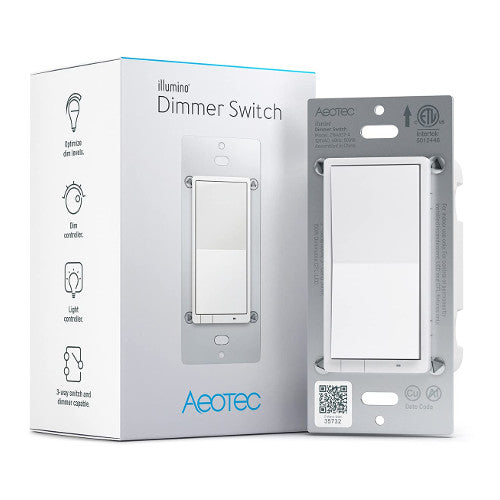

Aeotec illumino Z-Wave Smart Dimmer

AEO-DM-ZWA037-WT
  • $57.99


Make existing dimmer switches smart with Aeotec illumino Dimmer Switch that provides the power to responsively automate, intelligently schedule, and manually control your home's lighting. Compatible with the most commonly used bulbs, illumino Dimmer Switch can automate and control a single light or a bank of lights.

Features

  • 3-way-plus compatible
    Smarter smart switch. illumino Dimmer Switch is compatible with three-way and greater installations including physical and virtual (via Z-Wave) setups. You won't need to use dummy or add-on switches either.
  • Small, for easy, in-wall installation

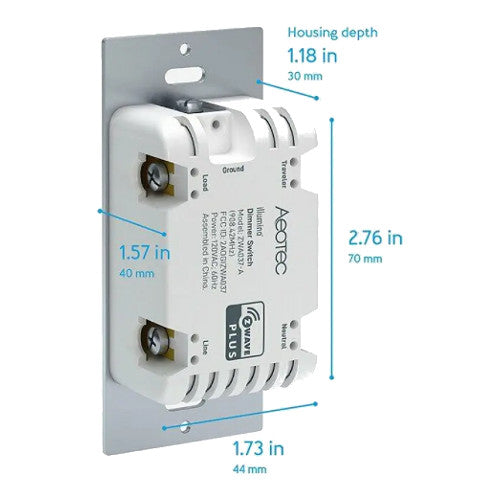

    Switch to wire easily within gang boxes. Its housing is only; 1.18" deep and 1.73" wide with the back offering easy and safe access to these wiring terminals: Ground, Line, Load, required Neutral, and optional Traveller ports for 3-way+ installations.
  • Style with your own face plate
    Crafted to North American standards, illumino Dimmer Switch is compatible with single and multi-gang, Decora style faceplates. That includes screwless and screwed types. Face plate not included.
  • Quality lighting. Quality dimmer
    Enhanced lighting means an enhanced dimmer switch. illumino Dimmer Switch has been certified, coded, and engineered with Aeotec’s decade-plus experience in crafting intelligent lighting controllers.

COMPATIBILITY

Protocol

SPECS

Technical Specifications

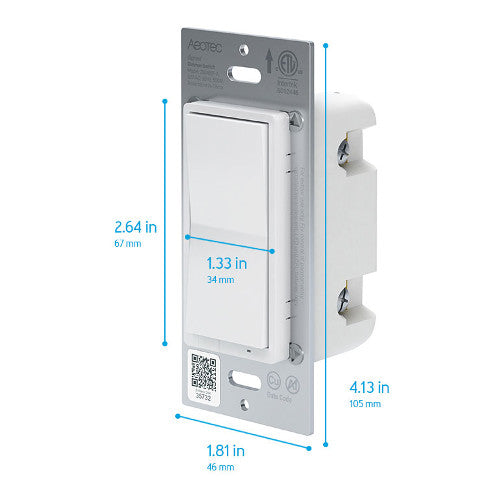

  • Product Dimensions: 105 x 46 x 40 mm
  • Product Weight: 150g
  • Input Voltage: 110/120 VAC 50/60Hz
  • Max standby power: 0.6W
  • Minimum Load: 5W with LED bulbs
  • Continuous Maximum Load: Output Load - 500W using incandescent / halogen or 150W using LED bulbs (Trailing Edge) / dimmable CFL
  • Operating temperature: 0℃ to 50℃
  • Power type: Wired
  • Operating distance: 35m Indoor and 150m outdoor

INSTALLATION

Installation Guide

Manual
