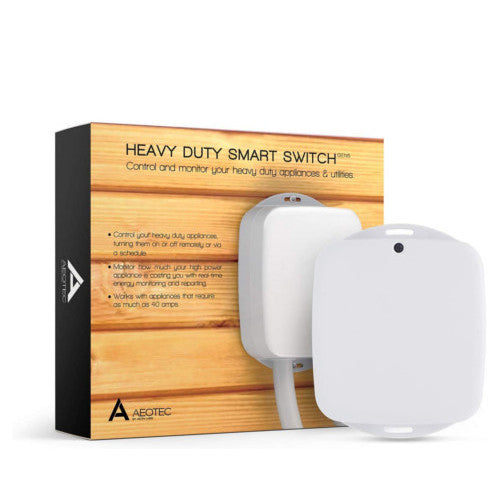

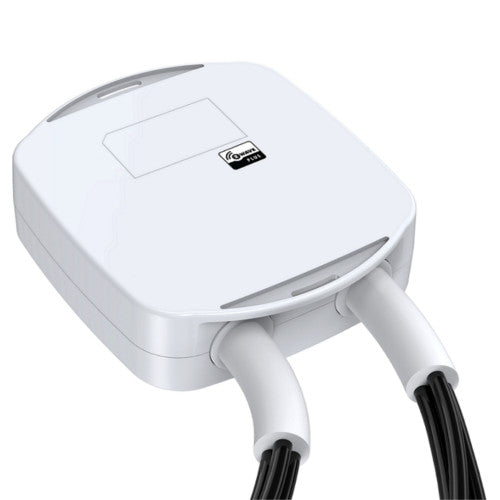

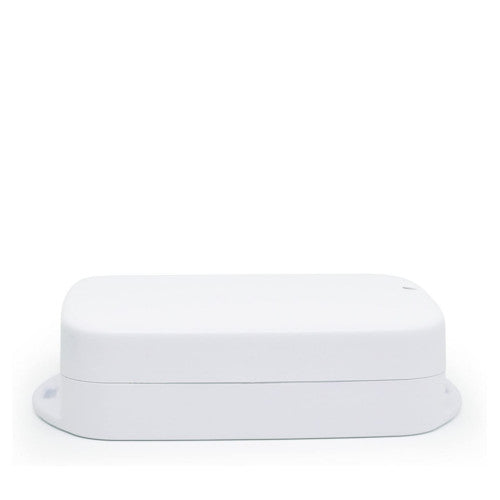

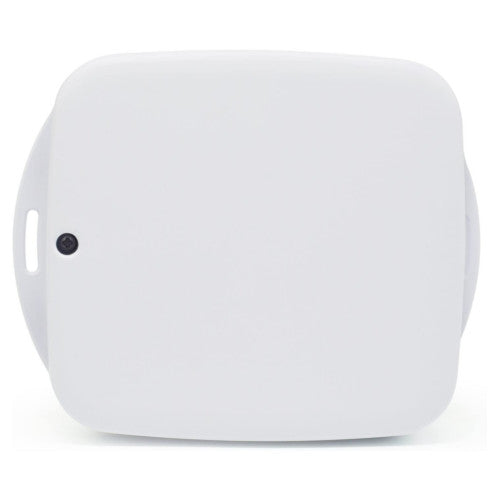

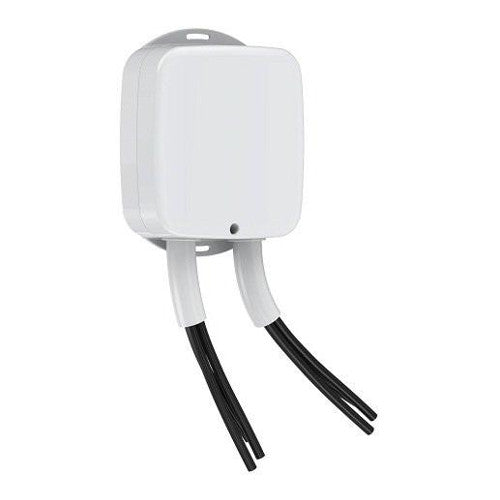

Aeotec Heavy Duty Smart Switch

AEO-OT-ZW078-WT
  • $122.99


The Aeotec Heavy Duty Smart Switch is is powered by Z-Wave’s new-gen 500 series chip and lets you remote control your heavy-duty 240V appliances rated up to 40A including your refrigerators, electric heaters, water heaters, pool pumps and electric car charging devices. It also has energy monitoring capabilities with the ability to report the wattage energy usage and KWh usage of the device wired into it, helping you monitor and lower your energy consumption to save money on your energy bills.

Features

  • Remote Control Heavy-Duty Appliances - Refrigerators, Electric Heaters, Pool Pumps
    The Aeotec Heavy Duty Smart Switch brings remote control to your heavy-duty 240V appliances rated up to 40A including refrigerators, electric heaters, water heaters, pool pumps and electric car charging devices.
  • Energy Monitoring Capabilities
    Larger appliances pull large amounts of power. The Aeotec Heavy Duty Smart Switch has energy monitoring capabilities with the ability to report the wattage energy usage and KWh usage of the device wired into it, helping you monitor and lower your energy consumption to save money on your energy bills.
  • Safe and Secure
    The Aeotec Heavy Duty Smart Switch can be used outdoors and offers banking grade AES-128 wireless data encryption to ensure that all your data is kept safe and secure.
  • Long-Range Antenna
    The long-range antenna can reach 490 feet allowing it to communicate over a far distance. It is water resistant and can be placed outdoors and it will communicate with other outside devices.
  • Latest Version of Z-Wave Built-in
    The Aeotec Heavy Duty Smart Switch is powered by Z-Wave’s new-gen 500 series chip, offering a 50% greater wireless range and a 250% faster communication speed over previous Z-Wave products.

COMPATIBILITY

Protocol

Z-Wave Plus

SPECS

Technical Specifications

  • Part Number: ZW078-A
  • Waterproof: IP44
  • Power Consumption: 1W
  • Ratings: 240VAC, 50/60Hz (2 Phases L1, L2); Max. 9600 Watts; 40A Resistor; 240VAC 5HP AC Motor
  • RF Range: 500 feet (150 m) outdoors; Endurance of 10ms period peak current of 1440A
  • Environmental Conditions: Indoor use
  • Altitude: Up to 2000m
  • Ambient Temperature: 5 to 40 degrees C
  • Max. Relative Humidity: 80 percent
  • Pollution Degree: 2
  • Warranty: 1 Year
  • Approvals: Z-Wave Plus, RoHS, ETL, FCC
  • Includes:
    • Heavy Duty Smart Switch Gen5
    • 8 AWG Wire terminal
    • 10 AWG Wire terminal
    • Screws
    • Instruction Manual

INSTALLATION

Installation Guide

Instruction Manual
