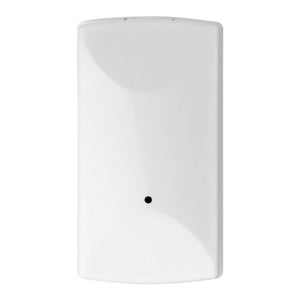

Are you looking to secure your home even more? The Ecolink Z-Wave Plus Garage Door Tilt Smart Sensor is a great addition to your garage door and will let you know at all times of potential intrusions through your garage doors as well as any other tampering that could occur. The entry points and contents of your garage will now be safe and secure at all times.

Features

• Detects any changes to your garage door

  When the status of your garage door changes, even a small tilt of the door, you will be notified. You will be alerted of any potential intrusions through your garage doors as well as any other tampering that could occur.

• Instant notifications if your garage door is left open


  If the garage door has been left open, you will receive a notification and then you will be able to close it remotely. This means your garage door will never be standing wide open.

• Additional Security

  The Ecolink Z-Wave Plus Garage Door Tilt Smart Sensor comes with a built-in tamper switch, providing additional security.

• Easy Installation

  Installation is simple and takes only minutes to set up using the included flush mount bracket.


• Easy Integration

  The sensor can be easily integrated into your existing Z-wave system and once this is done it can be used to trigger other components of your security system.

• Long Battery Life

  The Ecolink Z-Wave Plus Garage Door Tilt Smart Sensor comes with a lithium battery that lasts up to 5 to 8 years. When it is running low it will notify you.

COMPATIBILITY

Protocol

Works with

Works with HomeSeer, Nexia, Piper, SmartThings Hub, VeraEdge Z-Wave Gateway Controller, VeraLite Z-Wave Gateway Controller, Zipato Z-Wave Zipabox Smart Home Controller

SPECS

Technical Specifications

• Z-Wave Plus
• Operating frequency of 908.42MHz
• A wireless operating range of up to 100 feet (30.5 meters) in the line of sight
• Uses 3V CR123A Lithium battery
• Battery life of approximately 3 years
• Operating temperature: 32°-120°F (0°-49°C)
• Dimensions: 4” x 1.9” x 0.8”
• Includes: 1x Sensor, 1x Sensor Mounting Bracket, 2x Mounting Bracket Screws, 1x Sensor to Bracket Screw, 1x battery, 1x piece of adhesive tape
